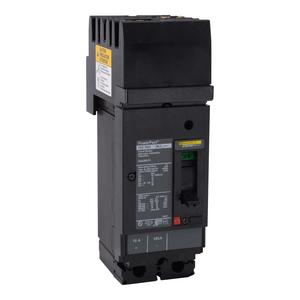

Schneider Electric HDA260352 Molded Case Circuit Breaker 600V 35A

Schneider Electric HDA260352 Molded Case Circuit Breaker 600V 35A

Schneider Electric
SKU:
HDA260352
|
UPC:
7.85902E+11
Availability:
Contact us to confirm availability and lead times.
$1,348.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 35A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Protected Poles Description:
2t
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Local Signalling:
switched off (OFF) 1 trip indicator green)
Terminal Identifier:
AL150HD
Range:
PowerPact
Device Application:
distribution
Magnetic Hold Current:
400 A
Net Weight:
2.2 kg
Mounting Mode:
I-Line bracket)
Width:
104 mm
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Mounting Height:
3 in
Circuit Breaker Application:
HACR rated
Eu Rohs Directive:
Compliant with Exemptions
Environmental Disclosure:
ENVPEP2206027EN
Warranty:
18 months
Utilisation Category:
category A
Quality Labels:
CE
Continuous Current Rating:
0.8
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Product Name:
PowerPact H
Wire Stripping Length:
16 mm
Sustainable Offer Status:
Green Premium product
Poles Description:
2P
Height:
163 mm
Circularity Profile:
ENVEOLI2206027EN
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Breaking Capacity Code:
D
Product Certifications:
UL || CSA || NOM
Trip Unit Technology:
thermal-magnetic
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Line Rated Current:
35-35 A
Rohs Exemption Information:
Yes
Network Frequency:
50/60 Hz
Mounting Support:
bracket
Quantity Per Set:
1
Ip Degree Of Protection:
front cover IP40 IEC 60529
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Pvc Free:
Yes
Ambient Air Temperature For Storage:
-50-85 °C
Control Type:
toggle
Phase Connection:
AC
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Color:
Black
Electrical Connection:
I-Line connection, line || lugs, load
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Suitability For Isolation:
yes IEC 60947-2
Magnetic Tripping Current:
850-850 A
Product Or Component Type:
circuit breaker
Pollution Degree:
3 IEC 60947-1
Depth:
86 mm
Mercury Free:
Yes
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Ambient Air Temperature For Operation:
-2-70 °C
Communication Interface:
Modbus || Ethernet
