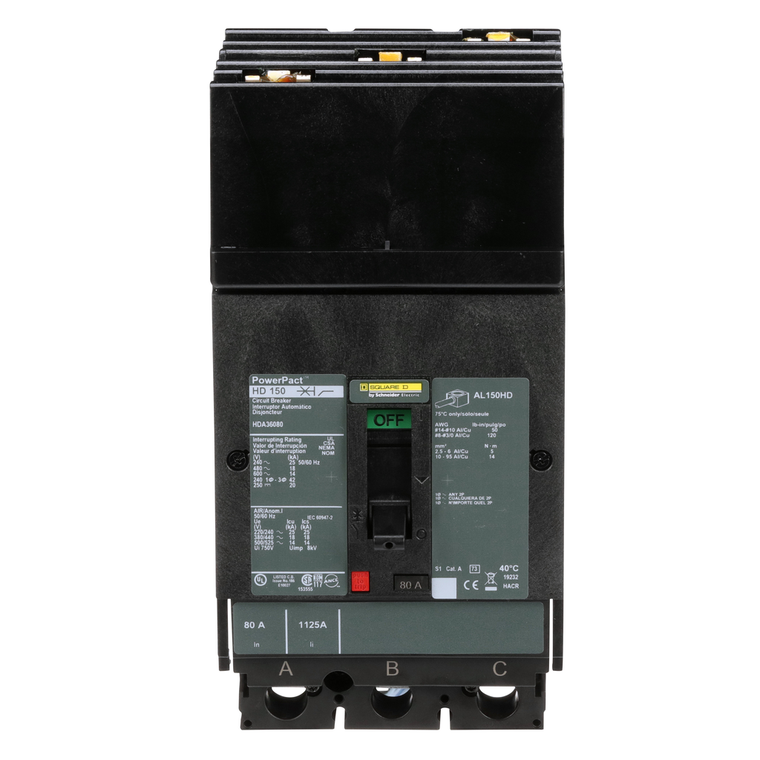

Schneider Electric HDA36080 Molded Case Circuit Breaker 600V 80A

Schneider Electric HDA36080 Molded Case Circuit Breaker 600V 80A

Schneider Electric
SKU:
HDA36080
|
UPC:
785901507277
Availability:
Contact us to confirm availability and lead times.
$1,361.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 80A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Terminal Identifier:
AL150HD
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Environmental Disclosure:
ENVPEP2206027EN
Ip Degree Of Protection:
front cover IP40 IEC 60529
Product Name:
PowerPact H
Eu Rohs Directive:
Compliant with Exemptions
Electrical Connection:
I-Line connection, line || lugs, load
Depth:
86 mm
Network Frequency:
50/60 Hz
Rohs Exemption Information:
Yes
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
Poles Description:
3P
Circularity Profile:
ENVEOLI2206027EN
Communication Interface:
Modbus || Ethernet
Ambient Air Temperature For Storage:
-50-85 °C
Net Weight:
2.2 kg
Control Type:
toggle
Local Signalling:
switched off (OFF) 1 trip indicator green)
Product Or Component Type:
circuit breaker
Pollution Degree:
3 IEC 60947-1
Utilisation Category:
category A
Magnetic Tripping Current:
1450-1450 A
Mounting Support:
bracket
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Width:
104 mm
Phase Connection:
ABC
Quality Labels:
CE
Magnetic Hold Current:
800 A
Trip Unit Technology:
thermal-magnetic
Pvc Free:
Yes
Quantity Per Set:
1
Mounting Height:
4.5 in
Warranty:
18 months
Continuous Current Rating:
0.8
Suitability For Isolation:
yes IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Circuit Breaker Application:
HACR rated
Line Rated Current:
80-80 A
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Mercury Free:
Yes
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Product Certifications:
UL || CSA || NOM
Sustainable Offer Status:
Green Premium product
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Color:
Black
Breaking Capacity Code:
D
Height:
163 mm
Protected Poles Description:
3t
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Mounting Mode:
I-Line bracket)
Ambient Air Temperature For Operation:
-2-70 °C
Device Application:
distribution
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Wire Stripping Length:
16 mm
Range:
PowerPact
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Brochure:
View
