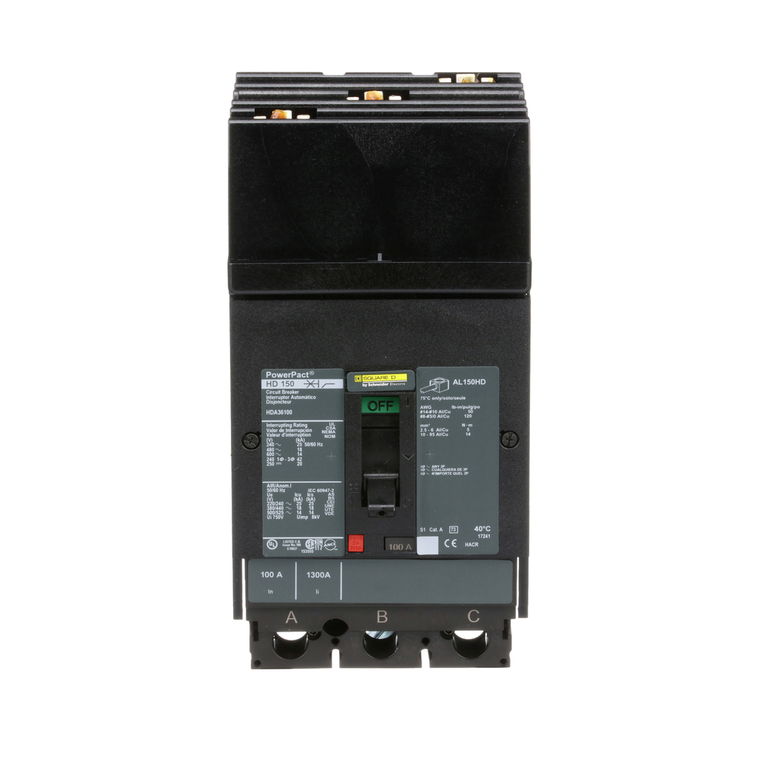

Schneider Electric HDA36100 Molded Case Circuit Breaker 600V 100A
Schneider Electric
$1,361.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Quality Labels:
- CE
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Quantity Per Set:
- 1
- Line Rated Current:
- 100-100 A
- Terminal Identifier:
- AL150HD
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Control Type:
- toggle
- Magnetic Tripping Current:
- 1700-1700 A
- Protected Poles Description:
- 3t
- Rohs Exemption Information:
- Yes
- Range:
- PowerPact
- Warranty:
- 18 months
- Phase Connection:
- ABC
- Poles Description:
- 3P
- Ambient Air Temperature For Storage:
- -50-85 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Circuit Breaker Application:
- HACR rated
- Pvc Free:
- Yes
- Magnetic Hold Current:
- 900 A
- Trip Unit Technology:
- thermal-magnetic
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Mounting Height:
- 4.5 in
- Suitability For Isolation:
- yes IEC 60947-2
- Wire Stripping Length:
- 16 mm
- Sustainable Offer Status:
- Green Premium product
- Net Weight:
- 2.2 kg
- Color:
- Black
- Electrical Connection:
- I-Line connection, line || lugs, load
- Pollution Degree:
- 3 IEC 60947-1
- Circularity Profile:
- ENVEOLI2206027EN
- Width:
- 104 mm
- Product Name:
- PowerPact H
- Eu Rohs Directive:
- Compliant with Exemptions
- Depth:
- 86 mm
- Height:
- 163 mm
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Certifications:
- UL || CSA || NOM
- Product Or Component Type:
- circuit breaker
- Communication Interface:
- Modbus || Ethernet
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Network Frequency:
- 50/60 Hz
- Mounting Support:
- bracket
- Device Application:
- distribution
- Utilisation Category:
- category A
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Mounting Mode:
- I-Line bracket)
- Ambient Air Temperature For Operation:
- -2-70 °C
- Environmental Disclosure:
- ENVPEP2206027EN
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Continuous Current Rating:
- 0.8
- Breaking Capacity Code:
- D
- Mercury Free:
- Yes
