Schneider Electric HDL36125 Molded Case Circuit Breaker 600V 125A

(No reviews yet) Write a Review

Write a Review

Schneider Electric

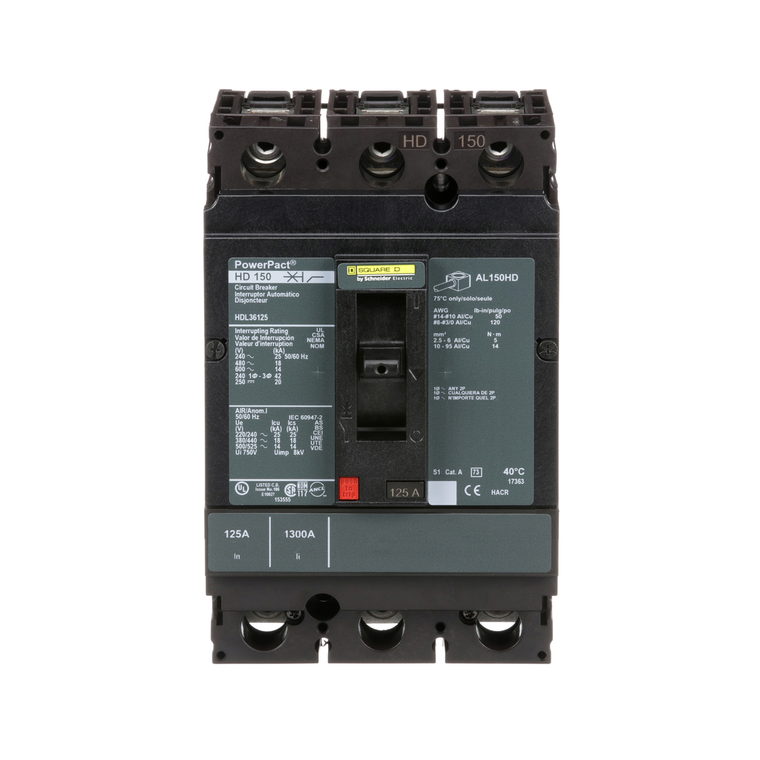

Schneider Electric HDL36125 Molded Case Circuit Breaker 600V 125A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HDL36125

UPC:

785901955849

MPN:

Condition:

New

Breaking Capacity:

25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC

Ip Degree Of Protection:

front cover IP40 IEC 60529

Eu Rohs Directive:

Compliant with Exemptions

Awg Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Environmental Disclosure:

ENVPEP2206027EN

Pollution Degree:

3 IEC 60947-1

Terminal Identifier:

AL150HD

Line Rated Current:

125-125 A

Ambient Air Temperature For Storage:

-50-85 °C

Poles Description:

3P

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Suitability For Isolation:

yes IEC 60947-2

Warranty:

18 months

Continuous Current Rating:

0.8

Communication Interface:

Modbus || Ethernet

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Product Or Component Type:

circuit breaker

Wire Stripping Length:

16 mm

Trip Unit Technology:

thermal-magnetic

Protected Poles Description:

3t

Sustainable Offer Status:

Green Premium product

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-3

Rohs Exemption Information:

Yes

Depth:

86 mm

Mounting Support:

lug

Quality Labels:

CE

Height:

163 mm

Pvc Free:

Yes

Net Weight:

2.2 kg

Breaking Capacity Code:

D

Electrical Connection:

lugs, line || lugs, load

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Magnetic Tripping Current:

1700-1700 A

Tightening Torque:

5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)

Product Name:

PowerPact H

Local Signalling:

switched off (OFF) 1 trip indicator green)

Color:

Black

Width:

104 mm

Circuit Breaker Application:

HACR rated

Device Application:

distribution

[Ics] Rated Service Breaking Capacity:

25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Magnetic Hold Current:

900 A

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Control Type:

toggle

Range:

PowerPact

Circularity Profile:

ENVEOLI2206027EN

Mercury Free:

Yes

Mounting Mode:

unit mount lug)

Ambient Air Temperature For Operation:

-2-70 °C

Quantity Per Set:

1

Product Certifications:

UL || CSA || NOM

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Network Frequency:

50/60 Hz

Utilisation Category:

category A

Brochure:

View
