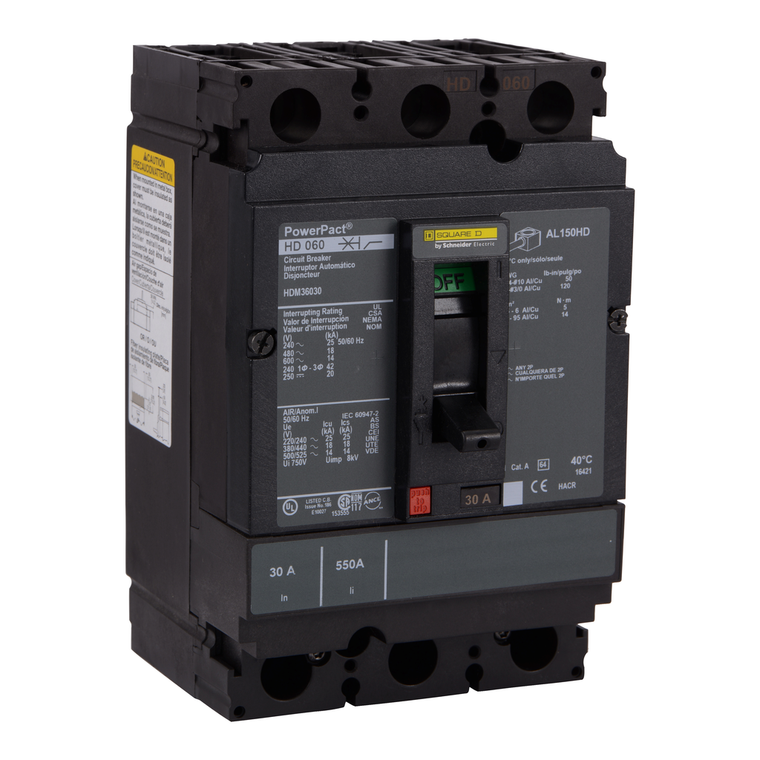

Schneider Electric HDM36150 Molded Case Circuit Breaker 600V 150A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on the line and terminal nuts on the load side. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Continuous Current Rating:
- 0.8
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Line Rated Current:
- 150-150 A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pollution Degree:
- 3 IEC 60947-1
- Sustainable Offer Status:
- Green Premium product
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Poles Description:
- 3P
- Control Type:
- toggle
- Circularity Profile:
- ENVEOLI2206027EN
- Wire Stripping Length:
- 16 mm
- Product Or Component Type:
- circuit breaker
- Ambient Air Temperature For Storage:
- -50-85 °C
- Pvc Free:
- Yes
- Circuit Breaker Application:
- HACR rated
- Height:
- 163 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Magnetic Tripping Current:
- 1700-1700 A
- Color:
- Black
- Electrical Connection:
- lugs, line || terminal nut, load
- Ambient Air Temperature For Operation:
- -2-70 °C
- Breaking Capacity Code:
- D
- Warranty:
- 18 months
- Magnetic Hold Current:
- 900 A
- Quantity Per Set:
- 1
- Net Weight:
- 2.2 kg
- Product Name:
- PowerPact H
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Mercury Free:
- Yes
- Range:
- PowerPact
- Protected Poles Description:
- 3t
- Trip Unit Technology:
- thermal-magnetic
- Device Application:
- distribution
- Communication Interface:
- Modbus || Ethernet
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Utilisation Category:
- category A
- Quality Labels:
- CE
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Rohs Exemption Information:
- Yes
- Network Frequency:
- 50/60 Hz
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Product Certifications:
- UL || CSA || NOM
- Mounting Mode:
- unit mount lug)
- Terminal Identifier:
- AL150HD
- Mounting Support:
- lug
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Suitability For Isolation:
- yes IEC 60947-2
- Environmental Disclosure:
- ENVPEP2206027EN
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Depth:
- 86 mm
- Width:
- 104 mm
