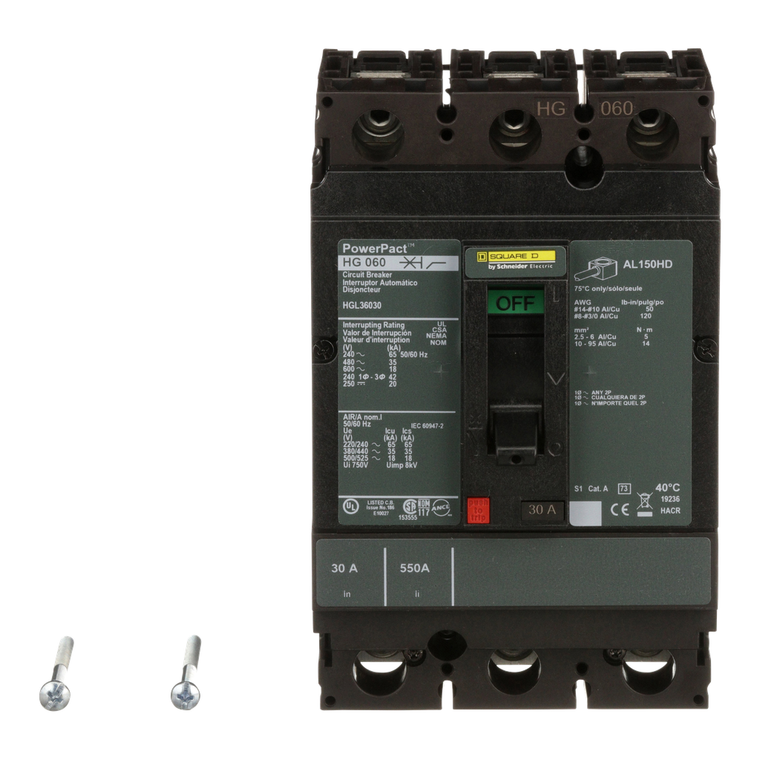

Schneider Electric HGL36030 Molded Case Circuit Breaker 600V 30A

(No reviews yet) Write a Review

Write a Review

Schneider Electric HGL36030 Molded Case Circuit Breaker 600V 30A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HGL36030

UPC:

785901598725

MPN:

Condition:

New

Local Signalling:

switched off (OFF) 1 trip indicator green)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Warranty:

18 months

Range:

PowerPact

Communication Interface:

Modbus || Ethernet

Protected Poles Description:

3t

Mercury Free:

Yes

Product Or Component Type:

circuit breaker

Circuit Breaker Application:

HACR rated

Suitability For Isolation:

yes IEC 60947-2

Utilisation Category:

category A

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Control Type:

toggle

Line Rated Current:

30-30 A

Depth:

86 mm

Rohs Exemption Information:

Yes

Product Certifications:

UL || CSA || NOM

Environmental Disclosure:

ENVPEP2206027EN

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Terminal Identifier:

AL150HD

Device Application:

distribution

Ambient Air Temperature For Storage:

-50-85 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Mounting Mode:

unit mount lug)

Breaking Capacity:

65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489

Height:

163 mm

Network Frequency:

50/60 Hz

Mounting Support:

lug

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Pollution Degree:

3 IEC 60947-1

Sustainable Offer Status:

Green Premium product

Pvc Free:

Yes

Magnetic Hold Current:

350 A

Ip Degree Of Protection:

front cover IP40 IEC 60529

Poles Description:

3P

Eu Rohs Directive:

Compliant with Exemptions

Tightening Torque:

5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)

Product Name:

PowerPact H

Breaking Capacity Code:

G

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-3

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Circularity Profile:

ENVEOLI2206027EN

Ambient Air Temperature For Operation:

-2-70 °C

Electrical Connection:

lugs, line || lugs, load

Color:

Black

Awg Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Width:

104 mm

Wire Stripping Length:

16 mm

Trip Unit Technology:

thermal-magnetic

Continuous Current Rating:

0.8

Net Weight:

2.2 kg

Quantity Per Set:

1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Magnetic Tripping Current:

750-750 A

Quality Labels:

CE
