Schneider Electric HGL36045 Molded Case Circuit Breaker 600V 45A
Schneider Electric
$1,493.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

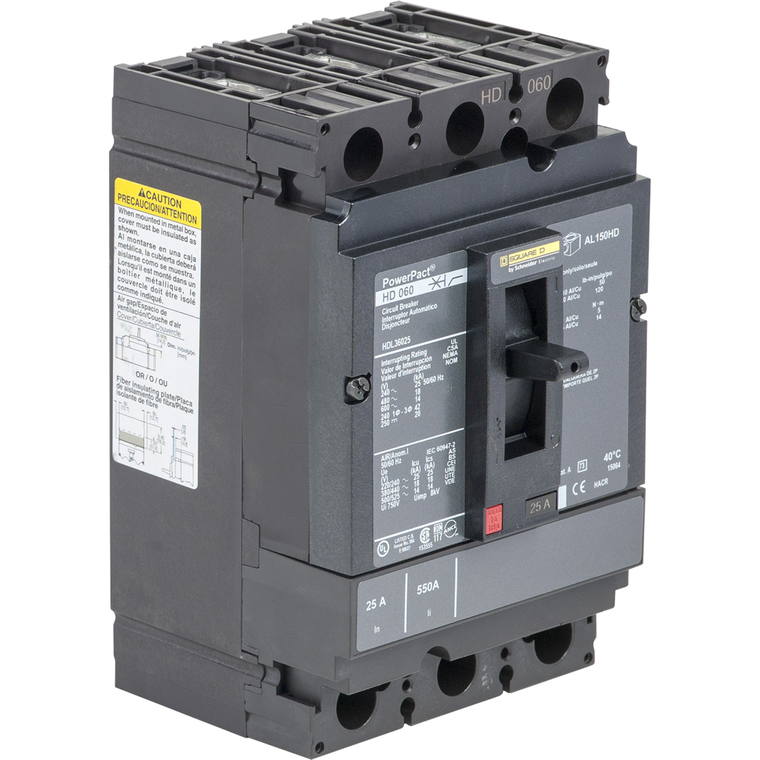

Schneider Electric HGL36045 Molded Case Circuit Breaker 600V 45A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 45A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Color:
- Black
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Terminal Identifier:
- AL150HD
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Device Application:
- distribution
- Quality Labels:
- CE
- Magnetic Tripping Current:
- 850-850 A
- Eu Rohs Directive:
- Compliant with Exemptions
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Environmental Disclosure:
- ENVPEP2206027EN
- Network Frequency:
- 50/60 Hz
- Protected Poles Description:
- 3t
- Circularity Profile:
- ENVEOLI2206027EN
- Warranty:
- 18 months
- Trip Unit Technology:
- thermal-magnetic
- Quantity Per Set:
- 1
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Wire Stripping Length:
- 16 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Ambient Air Temperature For Storage:
- -50-85 °C
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Communication Interface:
- Modbus || Ethernet
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Product Name:
- PowerPact H
- Product Certifications:
- UL || CSA || NOM
- Mounting Mode:
- unit mount lug)
- Line Rated Current:
- 45-45 A
- Suitability For Isolation:
- yes IEC 60947-2
- Pvc Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -2-70 °C
- Net Weight:
- 2.2 kg
- Electrical Connection:
- lugs, line || lugs, load
- Pollution Degree:
- 3 IEC 60947-1
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Control Type:
- toggle
- Magnetic Hold Current:
- 400 A
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Utilisation Category:
- category A
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circuit Breaker Application:
- HACR rated
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Depth:
- 86 mm
- Mounting Support:
- lug
- Width:
- 104 mm
- Poles Description:
- 3P
- Product Or Component Type:
- circuit breaker
- Continuous Current Rating:
- 0.8
- Range:
- PowerPact
- Mercury Free:
- Yes
- Breaking Capacity Code:
- G
- Height:
- 163 mm
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Rohs Exemption Information:
- Yes
