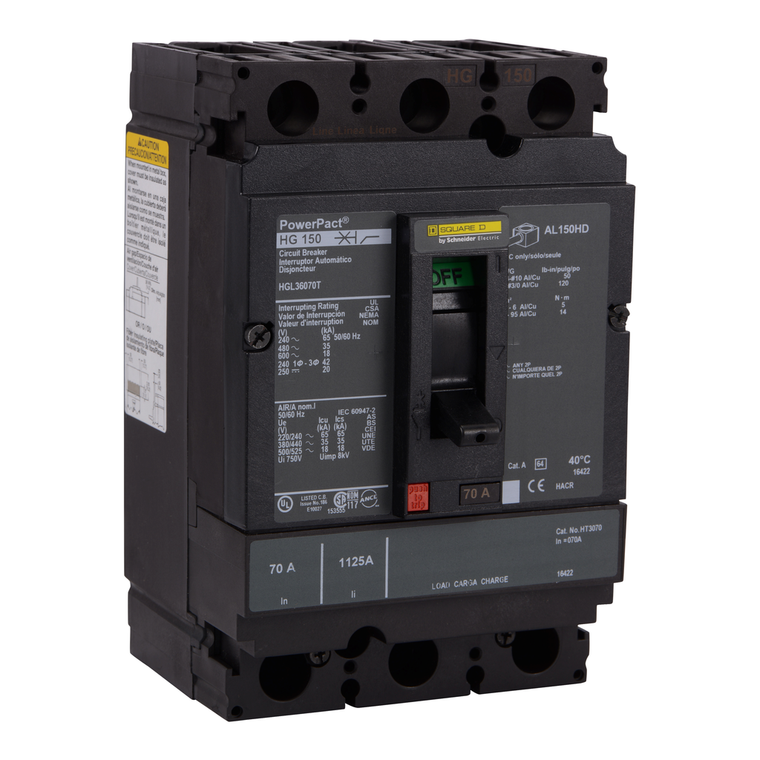

Schneider Electric HGL36070T Molded Case Circuit Breaker 600V 70A
Schneider Electric
$2,551.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 70A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit allows field-interchangeable trip units. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Range:
- PowerPact
- Width:
- 104 mm
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Ambient Air Temperature For Operation:
- -2-70 °C
- Poles Description:
- 3P
- Mercury Free:
- Yes
- Quantity Per Set:
- 1
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Sustainable Offer Status:
- Green Premium product
- Communication Interface:
- Modbus || Ethernet
- Line Rated Current:
- 70-70 A
- Height:
- 163 mm
- Mounting Mode:
- unit mount lug)
- Pollution Degree:
- 3 IEC 60947-1
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Installed Device:
- trip unit field installable
- Color:
- Black
- Quality Labels:
- CE
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Suitability For Isolation:
- yes IEC 60947-2
- Magnetic Tripping Current:
- 1450-1450 A
- Depth:
- 86 mm
- Ambient Air Temperature For Storage:
- -50-85 °C
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Breaking Capacity Code:
- G
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Circularity Profile:
- ENVEOLI1311006EN
- Protected Poles Description:
- 3t
- Device Application:
- distribution
- Control Type:
- toggle
- Wire Stripping Length:
- 16 mm
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Product Or Component Type:
- circuit breaker
- Net Weight:
- 2.2 kg
- Terminal Identifier:
- AL150HD
- Circuit Breaker Application:
- HACR rated
- Trip Unit Technology:
- thermal-magnetic
- Electrical Connection:
- lugs, line || lugs, load
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Pvc Free:
- Yes
- Eu Rohs Directive:
- Compliant
- Product Certifications:
- UL || CSA || NOM
- Environmental Disclosure:
- ENVPEP1311006EN
- Utilisation Category:
- category A
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Mounting Support:
- lug
- Product Name:
- PowerPact H
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Network Frequency:
- 50/60 Hz
- Continuous Current Rating:
- 0.8
- Magnetic Hold Current:
- 800 A
