Schneider Electric HGL36080 Molded Case Circuit Breaker 600V 80A
Schneider Electric
$1,701.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

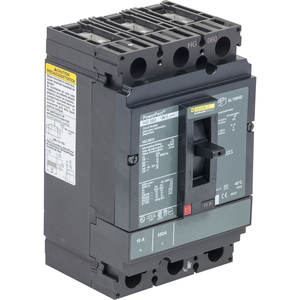

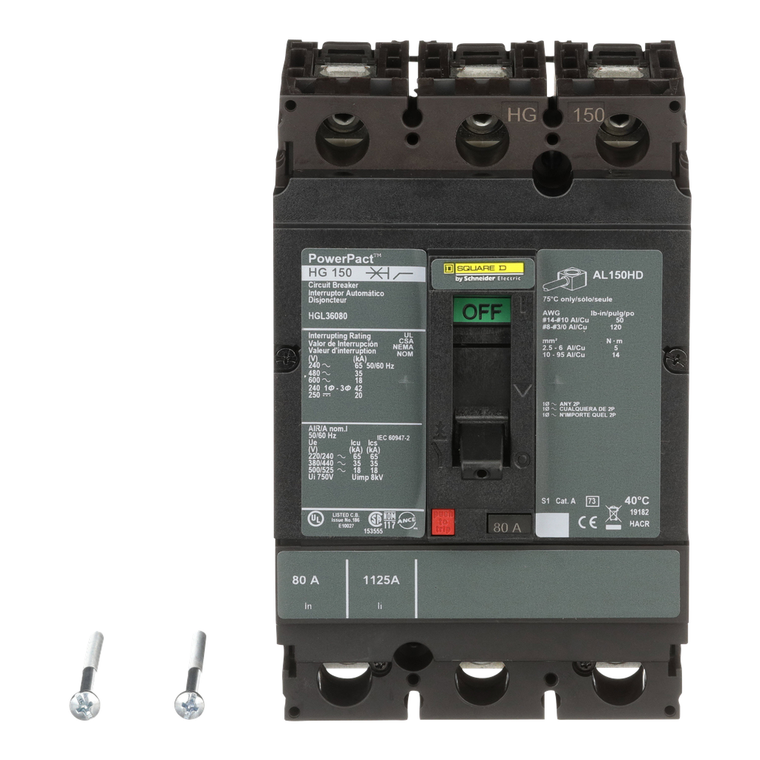

Schneider Electric HGL36080 Molded Case Circuit Breaker 600V 80A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 80A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Suitability For Isolation:
- yes IEC 60947-2
- Product Name:
- PowerPact H
- Network Frequency:
- 50/60 Hz
- Continuous Current Rating:
- 0.8
- Breaking Capacity Code:
- G
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Magnetic Tripping Current:
- 1450-1450 A
- Pvc Free:
- Yes
- Product Certifications:
- UL || CSA || NOM
- Protected Poles Description:
- 3t
- Poles Description:
- 3P
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Quality Labels:
- CE
- Electrical Connection:
- lugs, line || lugs, load
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Mounting Support:
- lug
- Eu Rohs Directive:
- Compliant with Exemptions
- Communication Interface:
- Modbus || Ethernet
- Pollution Degree:
- 3 IEC 60947-1
- Mounting Mode:
- unit mount lug)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Depth:
- 86 mm
- Product Or Component Type:
- circuit breaker
- Environmental Disclosure:
- ENVPEP2206027EN
- Warranty:
- 18 months
- Terminal Identifier:
- AL150HD
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Ambient Air Temperature For Operation:
- -2-70 °C
- Quantity Per Set:
- 1
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Control Type:
- toggle
- Wire Stripping Length:
- 16 mm
- Range:
- PowerPact
- Circularity Profile:
- ENVEOLI2206027EN
- Magnetic Hold Current:
- 800 A
- Utilisation Category:
- category A
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Rohs Exemption Information:
- Yes
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Height:
- 163 mm
- Width:
- 104 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage:
- -50-85 °C
- Line Rated Current:
- 80-80 A
- Color:
- Black
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Circuit Breaker Application:
- HACR rated
- Net Weight:
- 2.2 kg
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Sustainable Offer Status:
- Green Premium product
- Device Application:
- distribution
- Trip Unit Technology:
- thermal-magnetic
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
