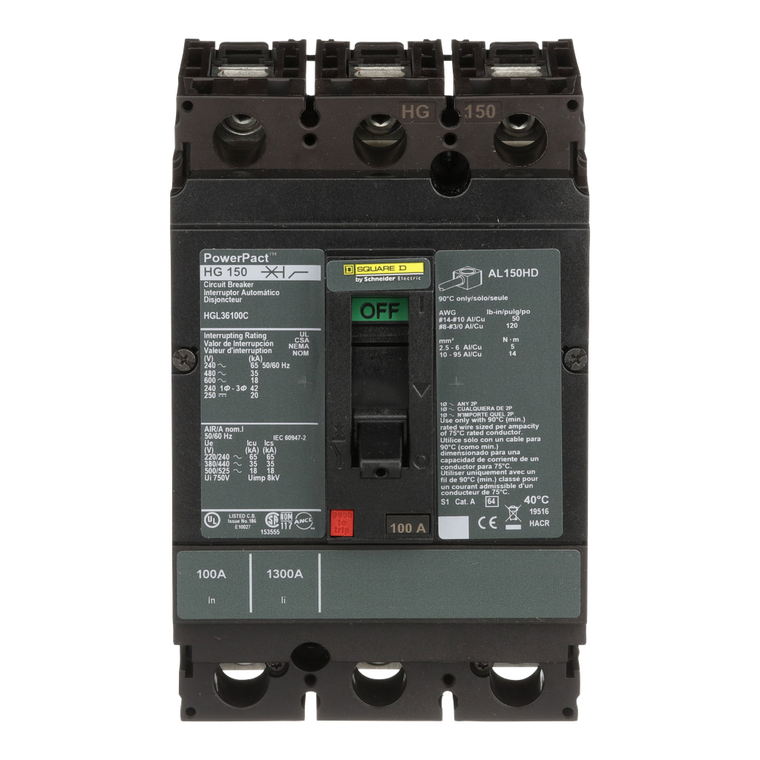

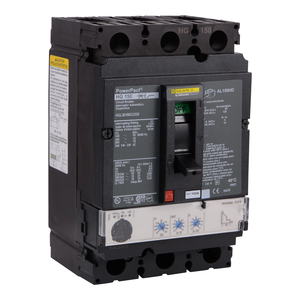

Schneider Electric HGL36100C Molded Case Circuit Breaker 600V 100A

Schneider Electric HGL36100C Molded Case Circuit Breaker 600V 100A

Schneider Electric
SKU:
HGL36100C
|
UPC:
785901597988
Availability:
Contact us to confirm availability and lead times.
$2,042.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Depth:
86 mm
Product Name:
PowerPact H
Wire Stripping Length:
16 mm
Width:
104 mm
Local Signalling:
switched off (OFF) 1 trip indicator green)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Sustainable Offer Status:
Green Premium product
Electrical Connection:
lugs, line || lugs, load
Product Certifications:
UL || CSA || NOM
Ambient Air Temperature For Storage:
-50-85 °C
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Net Weight:
2.2 kg
Line Rated Current:
100-100 A
Pollution Degree:
3 IEC 60947-1
Breaking Capacity Code:
G
Quantity Per Set:
1
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Environmental Disclosure:
ENVPEP2206027EN
Circularity Profile:
ENVEOLI2206027EN
Color:
Black
Rohs Exemption Information:
Yes
Device Application:
distribution
Utilisation Category:
category A
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Trip Unit Technology:
thermal-magnetic
Warranty:
18 months
Ambient Air Temperature For Operation:
-2-70 °C
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Mercury Free:
Yes
Continuous Current Rating:
1
Network Frequency:
50/60 Hz
Protected Poles Description:
3t
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Product Or Component Type:
circuit breaker
Eu Rohs Directive:
Compliant with Exemptions
Terminal Identifier:
AL150HD
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Circuit Breaker Application:
HACR rated
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Mounting Mode:
unit mount lug)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pvc Free:
Yes
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Quality Labels:
CE
Magnetic Tripping Current:
1700-1700 A
Communication Interface:
Modbus || Ethernet
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Control Type:
toggle
Height:
163 mm
Poles Description:
3P
Ip Degree Of Protection:
front cover IP40 IEC 60529
Mounting Support:
lug
Magnetic Hold Current:
900 A
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Range:
PowerPact
Suitability For Isolation:
yes IEC 60947-2
Brochure:
View
Catalog:
View
Datasheet:
View
