Schneider Electric HGM36100 Molded Case Circuit Breaker 600V 100A
Schneider Electric
$1,701.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

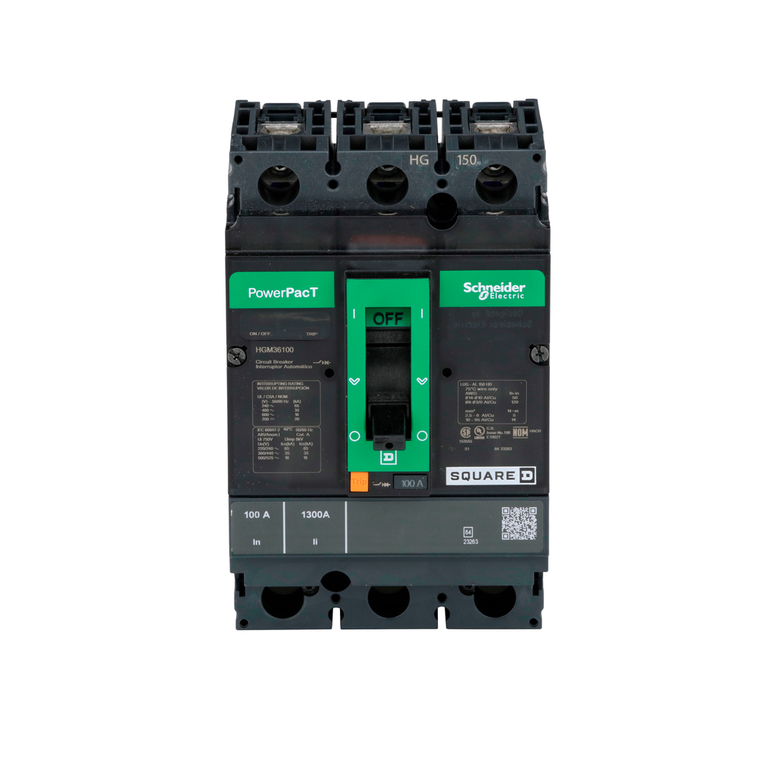

Schneider Electric HGM36100 Molded Case Circuit Breaker 600V 100A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on the line and terminal nuts on the load side. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Pollution Degree:
- 3 IEC 60947-1
- Mounting Mode:
- unit mount lug)
- Line Rated Current:
- 100-100 A
- Quality Labels:
- CE
- Net Weight:
- 2.2 kg
- Mercury Free:
- Yes
- Quantity Per Set:
- 1
- Range:
- PowerPact
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Communication Interface:
- Modbus || Ethernet
- Poles Description:
- 3P
- Mounting Support:
- lug
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Electrical Connection:
- lugs, line || terminal nut, load
- Magnetic Hold Current:
- 900 A
- Color:
- Black
- Trip Unit Technology:
- thermal-magnetic
- Pvc Free:
- Yes
- Product Or Component Type:
- circuit breaker
- Environmental Disclosure:
- ENVPEP2206027EN
- Breaking Capacity Code:
- G
- Eu Rohs Directive:
- Compliant with Exemptions
- Network Frequency:
- 50/60 Hz
- Depth:
- 86 mm
- Ambient Air Temperature For Storage:
- -50-85 °C
- Circularity Profile:
- ENVEOLI2206027EN
- Utilisation Category:
- category A
- Height:
- 163 mm
- Width:
- 104 mm
- Terminal Identifier:
- AL150HD
- Product Name:
- PowerPact H
- Wire Stripping Length:
- 16 mm
- Protected Poles Description:
- 3t
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Circuit Breaker Application:
- HACR rated
- Device Application:
- distribution
- Rohs Exemption Information:
- Yes
- Magnetic Tripping Current:
- 1700-1700 A
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Control Type:
- toggle
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Continuous Current Rating:
- 0.8
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Warranty:
- 18 months
- Product Certifications:
- UL || CSA || NOM
- Suitability For Isolation:
- yes IEC 60947-2
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Ambient Air Temperature For Operation:
- -2-70 °C
