Schneider Electric HJA36025 Molded Case Circuit Breaker 600V 25A
Schneider Electric
Schneider Electric HGP36025 Molded Case Circuit Breaker 600V 25A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

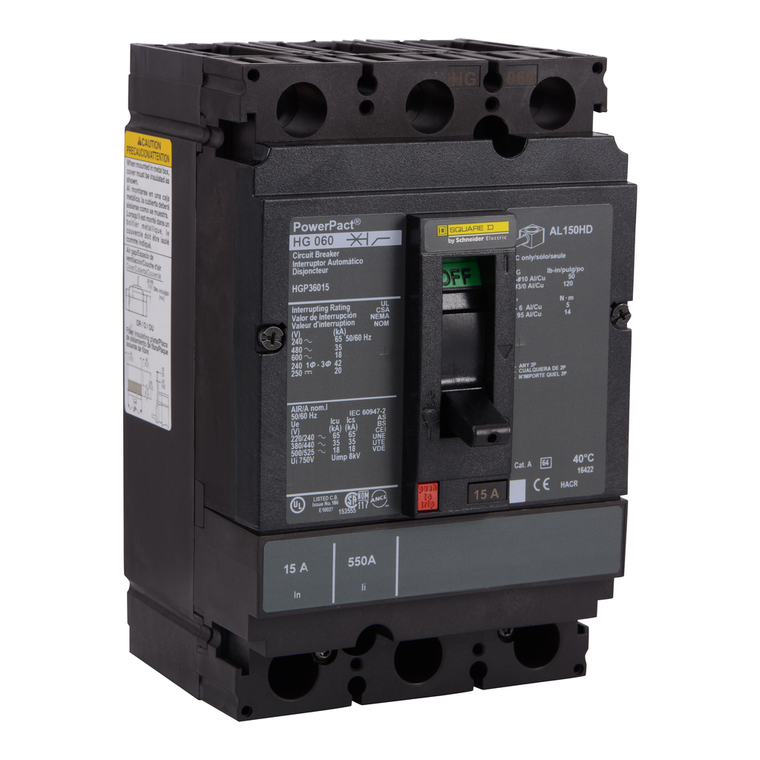

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has terminal nuts on the line side and lugs on the load side. This PowerPacT H, 25A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Mercury Free:
- Yes
- Color:
- Black
- Control Type:
- toggle
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Magnetic Tripping Current:
- 750-750 A
- Sustainable Offer Status:
- Green Premium product
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Line Rated Current:
- 25-25 A
- Net Weight:
- 2.2 kg
- Device Application:
- distribution
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Ambient Air Temperature For Operation:
- -2-70 °C
- Width:
- 104 mm
- Rohs Exemption Information:
- Yes
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Quantity Per Set:
- 1
- Ambient Air Temperature For Storage:
- -50-85 °C
- Product Name:
- PowerPact H
- Wire Stripping Length:
- 16 mm
- Continuous Current Rating:
- 0.8
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Pollution Degree:
- 3 IEC 60947-1
- Product Certifications:
- UL || CSA || NOM
- Warranty:
- 18 months
- Depth:
- 86 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Circularity Profile:
- ENVEOLI1311006EN
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Protected Poles Description:
- 3t
- Suitability For Isolation:
- yes IEC 60947-2
- Communication Interface:
- Modbus || Ethernet
- Quality Labels:
- CE
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Terminal Identifier:
- AL150HD
- Height:
- 163 mm
- Trip Unit Technology:
- thermal-magnetic
- Mounting Mode:
- unit mount lug)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Network Frequency:
- 50/60 Hz
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Pvc Free:
- Yes
- Mounting Support:
- lug
- Product Or Component Type:
- circuit breaker
- Magnetic Hold Current:
- 350 A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Range:
- PowerPact
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Breaking Capacity Code:
- G
- Circuit Breaker Application:
- HACR rated
- Electrical Connection:
- terminal nut, line || lugs, load
- Poles Description:
- 3P
- Utilisation Category:
- category A
- Eu Rohs Directive:
- Compliant
- Environmental Disclosure:
- ENVPEP1311006EN
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
