Schneider Electric HJA260155 Molded Case Circuit Breaker 600V 15A
Schneider Electric
$2,383.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

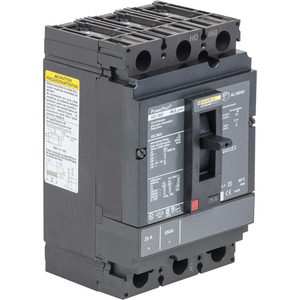

Schneider Electric HJA260155 Molded Case Circuit Breaker 600V 15A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 15A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with a CA phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Line Rated Current:
- 15-15 A
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Breaking Capacity Code:
- J
- Network Frequency:
- 50/60 Hz
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Product Or Component Type:
- circuit breaker
- Pollution Degree:
- 3 IEC 60947-1
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Trip Unit Technology:
- thermal-magnetic
- Ambient Air Temperature For Storage:
- -50-85 °C
- Quantity Per Set:
- 1
- Phase Connection:
- CA
- Circularity Profile:
- ENVEOLI2206027EN
- Warranty:
- 18 months
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Product Name:
- PowerPact H
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Device Application:
- distribution
- Net Weight:
- 2.2 kg
- Eu Rohs Directive:
- Compliant with Exemptions
- Width:
- 104 mm
- Circuit Breaker Application:
- HACR rated
- Communication Interface:
- Modbus || Ethernet
- Color:
- Black
- Magnetic Hold Current:
- 350 A
- Rohs Exemption Information:
- Yes
- Terminal Identifier:
- AL150HD
- Mercury Free:
- Yes
- Quality Labels:
- CE
- Range:
- PowerPact
- Poles Description:
- 2P
- Depth:
- 86 mm
- Magnetic Tripping Current:
- 750-750 A
- Height:
- 163 mm
- Environmental Disclosure:
- ENVPEP2206027EN
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Control Type:
- toggle
- Sustainable Offer Status:
- Green Premium product
- Mounting Support:
- bracket
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Protected Poles Description:
- 2t
- Product Certifications:
- UL || CSA || NOM
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Wire Stripping Length:
- 16 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Connection:
- I-Line connection, line || lugs, load
- Utilisation Category:
- category A
- Suitability For Isolation:
- yes IEC 60947-2
- Continuous Current Rating:
- 0.8
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Pvc Free:
- Yes
- Mounting Height:
- 4.5 in
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Mounting Mode:
- I-Line bracket)
- Ambient Air Temperature For Operation:
- -2-70 °C
