Schneider Electric HJA260702 Molded Case Circuit Breaker 600V 70A
Schneider Electric
$4,104.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

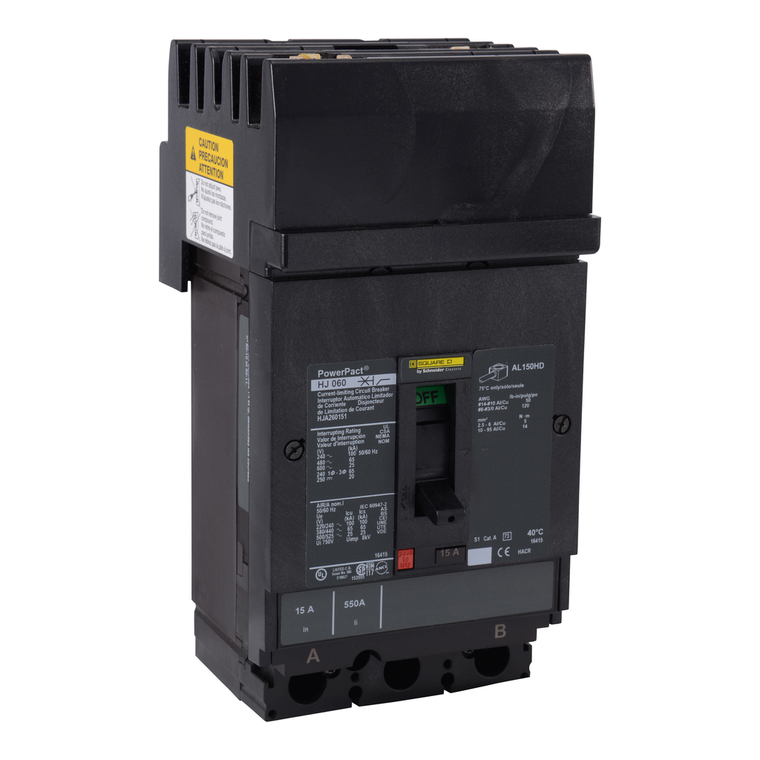

Schneider Electric HJA260702 Molded Case Circuit Breaker 600V 70A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 70A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Product Name:
- PowerPact H
- Color:
- Black
- Communication Interface:
- Modbus || Ethernet
- Protected Poles Description:
- 2t
- Magnetic Tripping Current:
- 1450-1450 A
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Sustainable Offer Status:
- Green Premium product
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Quality Labels:
- CE
- Breaking Capacity Code:
- J
- Magnetic Hold Current:
- 800 A
- Wire Stripping Length:
- 16 mm
- Mounting Support:
- bracket
- Electrical Connection:
- I-Line connection, line || lugs, load
- Phase Connection:
- AC
- Mercury Free:
- Yes
- Pvc Free:
- Yes
- Environmental Disclosure:
- ENVPEP1311006EN
- Mounting Mode:
- I-Line bracket)
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Warranty:
- 18 months
- Circularity Profile:
- ENVEOLI1311006EN
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Ambient Air Temperature For Operation:
- -2-70 °C
- Control Type:
- toggle
- Eu Rohs Directive:
- Compliant
- Depth:
- 86 mm
- Product Or Component Type:
- circuit breaker
- Height:
- 163 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Net Weight:
- 2.2 kg
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Circuit Breaker Application:
- HACR rated
- Terminal Identifier:
- AL150HD
- Device Application:
- distribution
- Width:
- 104 mm
- Line Rated Current:
- 70-70 A
- Quantity Per Set:
- 1
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Utilisation Category:
- category A
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Trip Unit Technology:
- thermal-magnetic
- Mounting Height:
- 4.5 in
- Poles Description:
- 2P
- Pollution Degree:
- 3 IEC 60947-1
- Continuous Current Rating:
- 0.8
- Network Frequency:
- 50/60 Hz
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Range:
- PowerPact
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Suitability For Isolation:
- yes IEC 60947-2
- Ambient Air Temperature For Storage:
- -50-85 °C
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Product Certifications:
- UL || CSA || NOM
- Rohs Exemption Information:
- Yes
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
