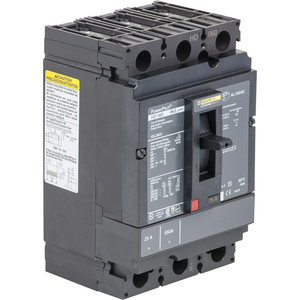

Schneider Electric HJA36040 Molded Case Circuit Breaker 600V 40A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 40A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Continuous Current Rating:
- 0.8
- Product Name:
- PowerPact H
- Magnetic Hold Current:
- 400 A
- Depth:
- 86 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Ambient Air Temperature For Storage:
- -50-85 °C
- Mounting Height:
- 4.5 in
- Breaking Capacity Code:
- J
- Color:
- Black
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Product Certifications:
- UL || CSA || NOM
- Warranty:
- 18 months
- Network Frequency:
- 50/60 Hz
- Environmental Disclosure:
- ENVPEP2206027EN
- Device Application:
- distribution
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Pvc Free:
- Yes
- Line Rated Current:
- 40-40 A
- Poles Description:
- 3P
- Phase Connection:
- ABC
- Range:
- PowerPact
- Mounting Mode:
- I-Line bracket)
- Mounting Support:
- bracket
- Sustainable Offer Status:
- Green Premium product
- Utilisation Category:
- category A
- Trip Unit Technology:
- thermal-magnetic
- Width:
- 104 mm
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Mercury Free:
- Yes
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Electrical Connection:
- I-Line connection, line || lugs, load
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Eu Rohs Directive:
- Compliant with Exemptions
- Terminal Identifier:
- AL150HD
- Height:
- 163 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Communication Interface:
- Modbus || Ethernet
- Control Type:
- toggle
- Circularity Profile:
- ENVEOLI2206027EN
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Pollution Degree:
- 3 IEC 60947-1
- Magnetic Tripping Current:
- 850-850 A
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Rohs Exemption Information:
- Yes
- Net Weight:
- 2.2 kg
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Ambient Air Temperature For Operation:
- -2-70 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circuit Breaker Application:
- HACR rated
- Wire Stripping Length:
- 16 mm
- Suitability For Isolation:
- yes IEC 60947-2
- Quality Labels:
- CE
- Protected Poles Description:
- 3t
- Product Or Component Type:
- circuit breaker
- Quantity Per Set:
- 1
