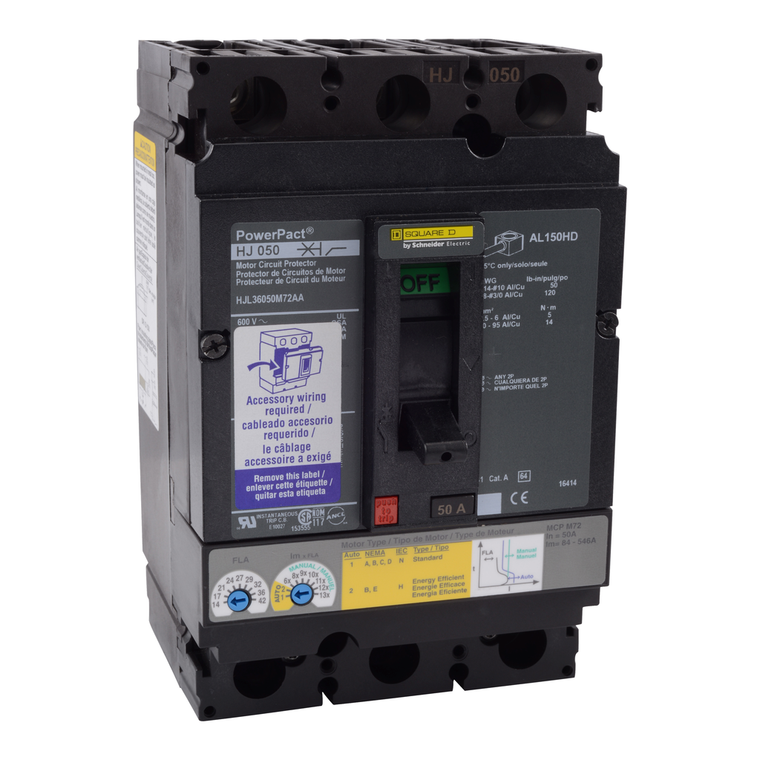

Schneider Electric HJL36050M72AA Motor Circuit Protector 600V 50A
Schneider Electric
$2,523.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 50A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a factory installed 1A/1B auxiliary switch. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Line Rated Current:
- 50-50 A
- Rohs Exemption Information:
- Yes
- Quantity Per Set:
- 1
- Mercury Free:
- Yes
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- [Ith] Conventional Free Air Thermal Current:
- 14-42 A
- Environmental Disclosure:
- ENVPEP2206027EN
- Magnetic Tripping Current:
- 84-546 A
- Net Weight:
- 2.2 kg
- Color:
- Black
- Wire Stripping Length:
- 16 mm
- Width:
- 104 mm
- Suitability For Isolation:
- yes IEC 60947-2
- Protected Poles Description:
- 3t
- Device Application:
- distribution
- Sustainable Offer Status:
- Green Premium product
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Mounting Support:
- lug
- Trip Unit Technology:
- thermal-magnetic
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Ambient Air Temperature For Operation:
- -2-70 °C
- Eu Rohs Directive:
- Compliant with Exemptions
- Utilisation Category:
- category A
- Mounting Mode:
- unit mount lug)
- Accessory / Separate Part Type:
- auxiliary switch 24 V AC/DC 1 NO + 1 NC cover frame
- Electrical Connection:
- lugs, line || lugs, load
- Product Name:
- PowerPact H
- Product Certifications:
- UL || CSA || NOM
- Product Or Component Type:
- Motor Circuit Protector
- Range:
- PowerPact
- Control Type:
- toggle
- Pvc Free:
- Yes
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pollution Degree:
- 3 IEC 60947-1
- Network Frequency:
- 50/60 Hz
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Ambient Air Temperature For Storage:
- -50-85 °C
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Communication Interface:
- Modbus || Ethernet
- Breaking Capacity Code:
- J
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Continuous Current Rating:
- 0.8
- Depth:
- 86 mm
- Warranty:
- 18 months
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Height:
- 163 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Quality Labels:
- CE
- Circularity Profile:
- ENVEOLI2206027EN
- Terminal Identifier:
- AL150HD
- Poles Description:
- 3P
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
