Schneider Electric HJL36100M73 Motor Circuit Protector 600V 100A
Schneider Electric
$1,646.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

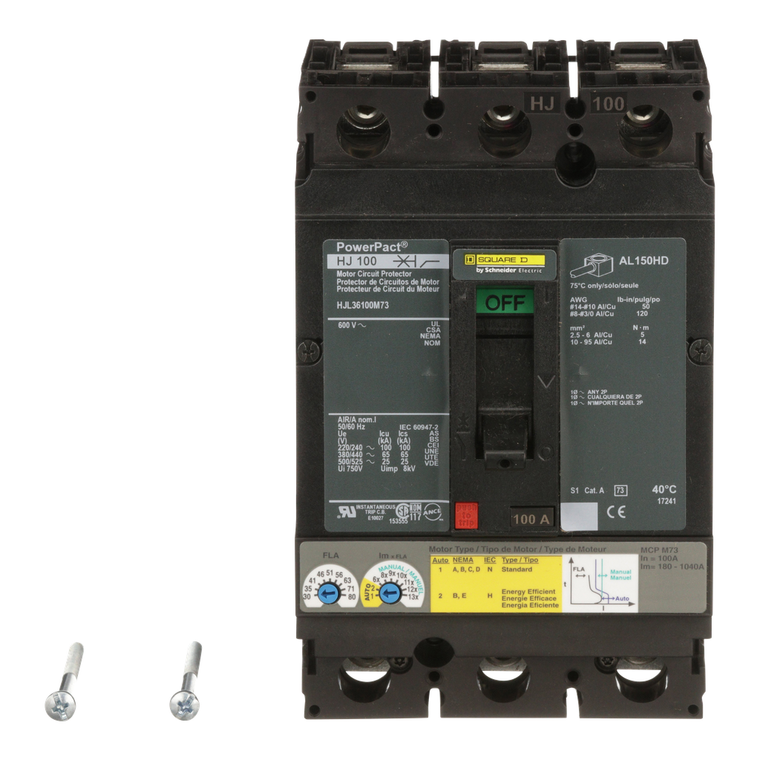

Schneider Electric HJL36100M73 Motor Circuit Protector 600V 100A
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This unit has lugs on both the line and load side. This PowerPacT H, 100A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This breaker has lugs on both the line and load sides. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
- Ambient Air Temperature For Operation:
- -2-70 °C
- Electrical Connection:
- lugs, line || lugs, load
- Mercury Free:
- Yes
- Net Weight:
- 2.2 kg
- Quality Labels:
- CE
- Poles Description:
- 3P
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Utilisation Category:
- category A
- Circularity Profile:
- ENVEOLI2206027EN
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Pvc Free:
- Yes
- Rohs Exemption Information:
- Yes
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Eu Rohs Directive:
- Compliant with Exemptions
- Mounting Mode:
- unit mount lug)
- Range:
- PowerPact
- Trip Unit Technology:
- thermal-magnetic
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Ambient Air Temperature For Storage:
- -50-85 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Protected Poles Description:
- 3t
- Continuous Current Rating:
- 0.8
- Mounting Support:
- lug
- Width:
- 104 mm
- Communication Interface:
- Modbus || Ethernet
- Product Certifications:
- UL || CSA || NOM
- Sustainable Offer Status:
- Green Premium product
- Control Type:
- toggle
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Wire Stripping Length:
- 16 mm
- Product Or Component Type:
- Motor Circuit Protector
- Color:
- Black
- Quantity Per Set:
- 1
- Environmental Disclosure:
- ENVPEP2206027EN
- Pollution Degree:
- 3 IEC 60947-1
- Depth:
- 86 mm
- Device Application:
- distribution
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Warranty:
- 18 months
- Magnetic Tripping Current:
- 180-1040 A
- Product Name:
- PowerPact H
- Network Frequency:
- 50/60 Hz
- Line Rated Current:
- 100-100 A
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Suitability For Isolation:
- yes IEC 60947-2
- Breaking Capacity Code:
- J
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Height:
- 163 mm
- [Ith] Conventional Free Air Thermal Current:
- 30-80 A
- Terminal Identifier:
- AL150HD
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
