Schneider Electric HJL36150M74AA Motor Circuit Protector 600V 150A

Schneider Electric HJL36150M74AA Motor Circuit Protector 600V 150A

Schneider Electric
SKU:
HJL36150M74AA
|
UPC:
785901054399
$2,366.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

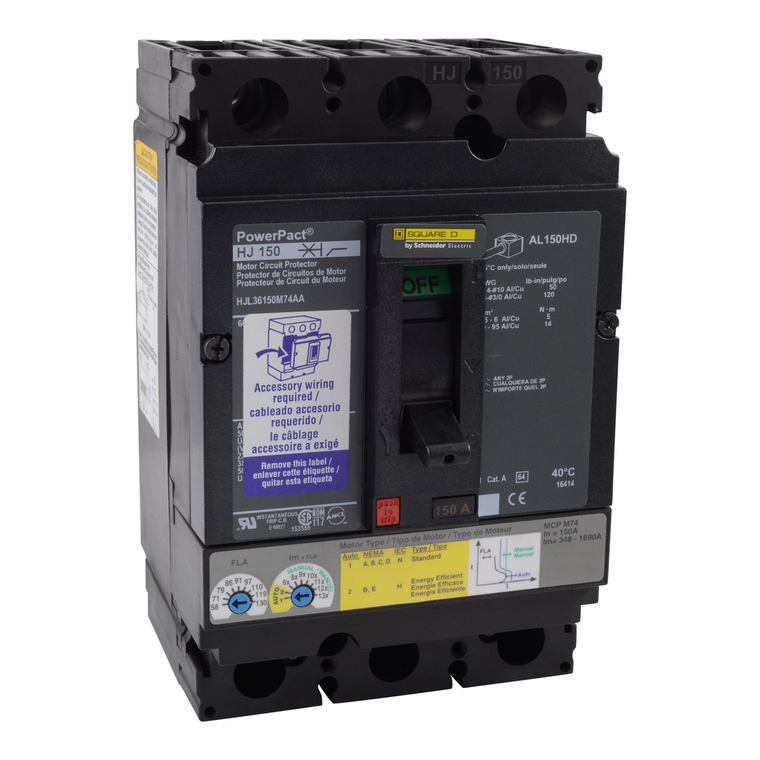

PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 150A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. This unit includes a factory installed 1A/1B auxiliary switch. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Additional Information
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Protected Poles Description:
3t
Poles Description:
3P
Accessory / Separate Part Type:
auxiliary switch 24 V AC/DC 1 NO + 1 NC cover frame
Line Rated Current:
150-150 A
Quantity Per Set:
1
Magnetic Tripping Current:
348-1690 A
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Network Frequency:
50/60 Hz
Height:
163 mm
Warranty:
18 months
[Ith] Conventional Free Air Thermal Current:
58-130 A
Trip Unit Technology:
thermal-magnetic
Quality Labels:
CE
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Control Type:
toggle
Pvc Free:
Yes
Circularity Profile:
ENVEOLI2206027EN
Pollution Degree:
3 IEC 60947-1
Net Weight:
2.2 kg
Mounting Support:
lug
Color:
Black
Wire Stripping Length:
16 mm
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Continuous Current Rating:
0.8
Sustainable Offer Status:
Green Premium product
Terminal Identifier:
AL150HD
Suitability For Isolation:
yes IEC 60947-2
Electrical Connection:
lugs, line || lugs, load
Product Certifications:
UL || CSA || NOM
Eu Rohs Directive:
Compliant with Exemptions
Mercury Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Range:
PowerPact
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Width:
104 mm
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Depth:
86 mm
Ambient Air Temperature For Operation:
-2-70 °C
Ambient Air Temperature For Storage:
-50-85 °C
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Communication Interface:
Modbus || Ethernet
Product Or Component Type:
Motor Circuit Protector
Product Name:
PowerPact H
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ip Degree Of Protection:
front cover IP40 IEC 60529
Environmental Disclosure:
ENVPEP2206027EN
Rohs Exemption Information:
Yes
Device Application:
distribution
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Breaking Capacity Code:
J
Utilisation Category:
category A
Mounting Mode:
unit mount lug)
Brochure:
View
Catalog:
View
Datasheet:
View
