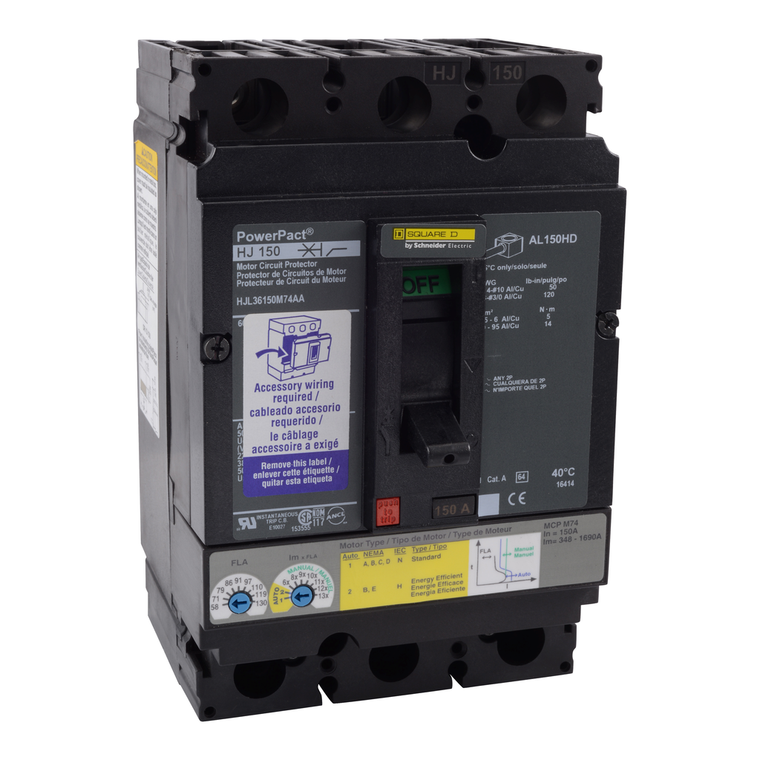

Schneider Electric HJM36150 Molded Case Circuit Breaker 600V 150A
Schneider Electric
$5,174.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HJM36150 Molded Case Circuit Breaker 600V 150A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on the line and terminal nuts on the load side. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Product Or Component Type:
- circuit breaker
- Control Type:
- toggle
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Net Weight:
- 2.2 kg
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Terminal Identifier:
- AL150HD
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Pollution Degree:
- 3 IEC 60947-1
- Poles Description:
- 3P
- Ambient Air Temperature For Storage:
- -50-85 °C
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Wire Stripping Length:
- 16 mm
- Color:
- Black
- Breaking Capacity Code:
- J
- Continuous Current Rating:
- 0.8
- Ambient Air Temperature For Operation:
- -2-70 °C
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Line Rated Current:
- 150-150 A
- Sustainable Offer Status:
- Green Premium product
- Communication Interface:
- Modbus || Ethernet
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Utilisation Category:
- category A
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Network Frequency:
- 50/60 Hz
- Product Name:
- PowerPact H
- Magnetic Hold Current:
- 900 A
- Environmental Disclosure:
- ENVPEP2206027EN
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Device Application:
- distribution
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Pvc Free:
- Yes
- Width:
- 104 mm
- Height:
- 163 mm
- Suitability For Isolation:
- yes IEC 60947-2
- Mounting Support:
- lug
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Mounting Mode:
- unit mount lug)
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Electrical Connection:
- lugs, line || terminal nut, load
- Quantity Per Set:
- 1
- Trip Unit Technology:
- thermal-magnetic
- Protected Poles Description:
- 3t
- Product Certifications:
- UL || CSA || NOM
- Circuit Breaker Application:
- HACR rated
- Rohs Exemption Information:
- Yes
- Range:
- PowerPact
- Quality Labels:
- CE
- Circularity Profile:
- ENVEOLI2206027EN
- Depth:
- 86 mm
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Warranty:
- 18 months
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Magnetic Tripping Current:
- 1700-1700 A
