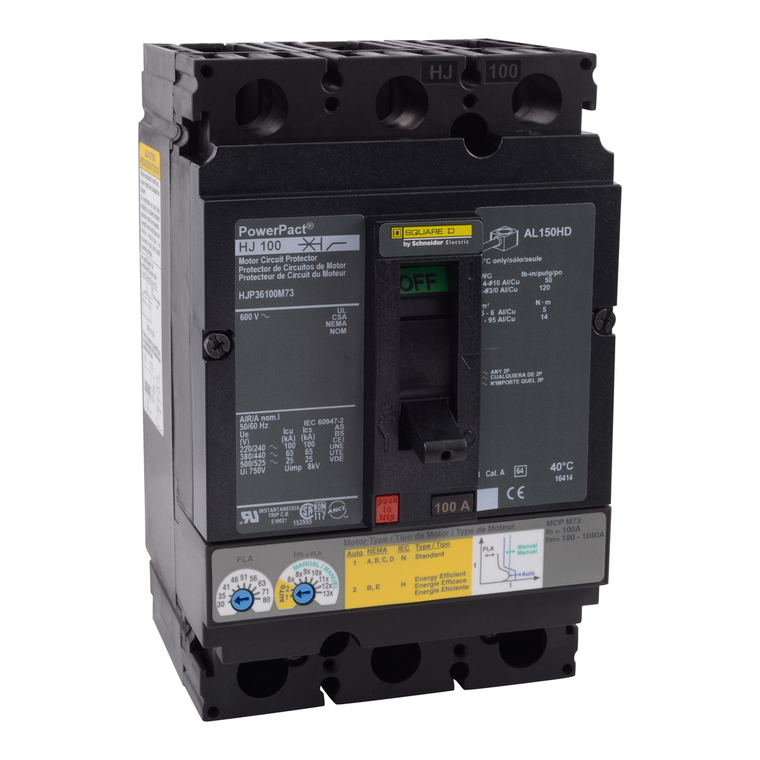

Schneider Electric HJP36100M73 Motor Circuit Protector 600V 100A
Schneider Electric
$1,646.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 100A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. This unit has a terminal nut on the line side and mechanical lugs on the load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
- Quality Labels:
- CE
- Range:
- PowerPact
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Color:
- Black
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Breaking Capacity Code:
- J
- Product Or Component Type:
- Motor Circuit Protector
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Communication Interface:
- Modbus || Ethernet
- Magnetic Tripping Current:
- 180-1040 A
- Poles Description:
- 3P
- Circularity Profile:
- ENVEOLI2206027EN
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mounting Mode:
- unit mount lug)
- Product Name:
- PowerPact H
- Width:
- 104 mm
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Mounting Support:
- lug
- Trip Unit Technology:
- thermal-magnetic
- Control Type:
- toggle
- Mercury Free:
- Yes
- Quantity Per Set:
- 1
- Eu Rohs Directive:
- Compliant with Exemptions
- Height:
- 163 mm
- Ambient Air Temperature For Storage:
- -50-85 °C
- Rohs Exemption Information:
- Yes
- Depth:
- 86 mm
- Environmental Disclosure:
- ENVPEP2206027EN
- Net Weight:
- 2.2 kg
- Pollution Degree:
- 3 IEC 60947-1
- Line Rated Current:
- 100-100 A
- Terminal Identifier:
- AL150HD
- Continuous Current Rating:
- 0.8
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Pvc Free:
- Yes
- Product Certifications:
- UL || CSA || NOM
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Protected Poles Description:
- 3t
- Sustainable Offer Status:
- Green Premium product
- Device Application:
- distribution
- Electrical Connection:
- terminal nut, line || lugs, load
- Ambient Air Temperature For Operation:
- -2-70 °C
- Warranty:
- 18 months
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- [Ith] Conventional Free Air Thermal Current:
- 30-80 A
- Wire Stripping Length:
- 16 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Network Frequency:
- 50/60 Hz
- Utilisation Category:
- category A
- Suitability For Isolation:
- yes IEC 60947-2
