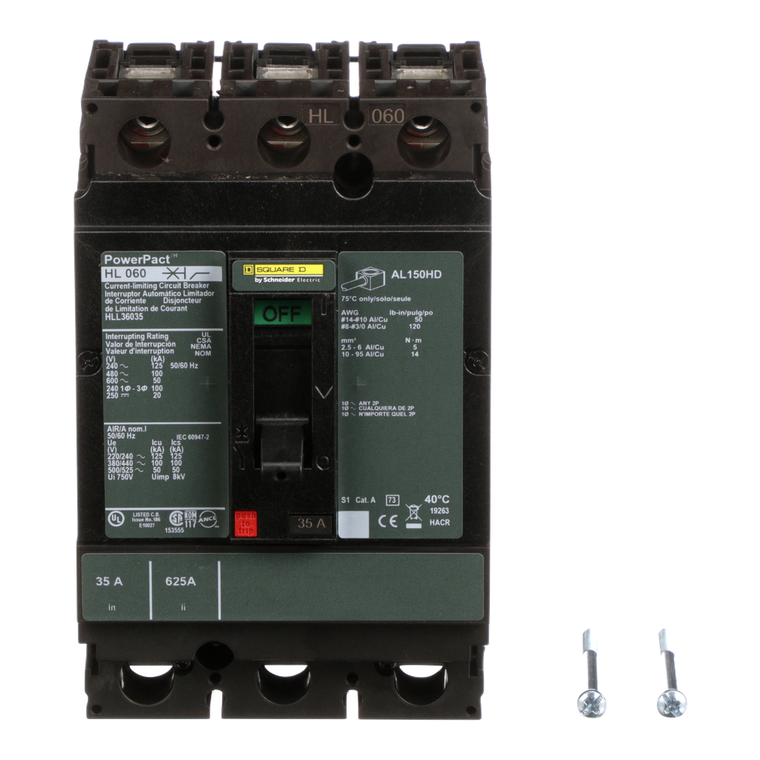

Schneider Electric HLL36035 Molded Case Circuit Breaker 600V 35A

(No reviews yet) Write a Review

Write a Review

Schneider Electric HLL36035 Molded Case Circuit Breaker 600V 35A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HLL36035

UPC:

785901683124

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Depth:

86 mm

Environmental Disclosure:

ENVPEP2206027EN

Width:

104 mm

Magnetic Hold Current:

400 A

Eu Rohs Directive:

Compliant with Exemptions

Height:

163 mm

Mercury Free:

Yes

Poles Description:

3P

Product Name:

PowerPact H

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Product Or Component Type:

circuit breaker

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-3

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Breaking Capacity Code:

L

Rohs Exemption Information:

Yes

Terminal Identifier:

AL150HD

Trip Unit Technology:

thermal-magnetic

Color:

Black

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile:

ENVEOLI2206027EN

Local Signalling:

switched off (OFF) 1 trip indicator green)

Ambient Air Temperature For Storage:

-50-85 °C

Magnetic Tripping Current:

850-850 A

[Ics] Rated Service Breaking Capacity:

125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Suitability For Isolation:

yes IEC 60947-2

Warranty:

18 months

Quality Labels:

CE

Electrical Connection:

lugs, line || lugs, load

Breaking Capacity:

125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489

Communication Interface:

Modbus || Ethernet

Mounting Mode:

unit mount lug)

Device Application:

distribution

Range:

PowerPact

Wire Stripping Length:

16 mm

Ambient Air Temperature For Operation:

-2-70 °C

Ip Degree Of Protection:

front cover IP40 IEC 60529

Product Certifications:

UL || CSA || NOM

Pvc Free:

Yes

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Network Frequency:

50/60 Hz

Quantity Per Set:

1

Control Type:

toggle

Continuous Current Rating:

0.8

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Pollution Degree:

3 IEC 60947-1

Mounting Support:

lug

Awg Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Circuit Breaker Application:

HACR rated

Protected Poles Description:

3t

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Net Weight:

2.2 kg

Utilisation Category:

category A

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Line Rated Current:

35-35 A

Tightening Torque:

5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
