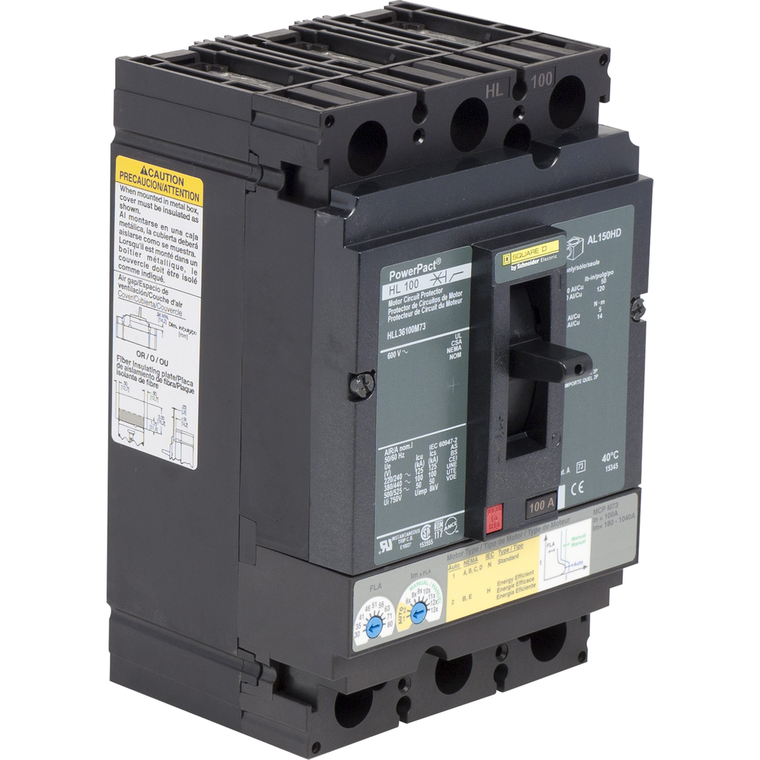

Schneider Electric HLL36100M73 Motor Circuit Protector 600V 100A

Schneider Electric HLL36100M73 Motor Circuit Protector 600V 100A

Schneider Electric
SKU:
HLL36100M73
|
UPC:
785901914006
Availability:
Contact us to confirm availability and lead times.
$1,827.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 100A, 3 pole, motor protector has a breaking capacity of 50kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Additional Information
Height:
163 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Width:
104 mm
Rohs Exemption Information:
Yes
[Ics] Rated Service Breaking Capacity:
125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Warranty:
18 months
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Color:
Black
Breaking Capacity Code:
L
Wire Stripping Length:
16 mm
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Control Type:
toggle
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Terminal Identifier:
AL150HD
Quality Labels:
CE
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Range:
PowerPact
Ambient Air Temperature For Operation:
-2-70 °C
Communication Interface:
Modbus || Ethernet
Suitability For Isolation:
yes IEC 60947-2
Product Certifications:
UL || CSA || NOM
Net Weight:
2.2 kg
Product Or Component Type:
Motor Circuit Protector
Mounting Mode:
unit mount lug)
Depth:
86 mm
Utilisation Category:
category A
Product Name:
PowerPact H
Sustainable Offer Status:
Green Premium product
Poles Description:
3P
Eu Rohs Directive:
Compliant with Exemptions
Electrical Connection:
lugs, line || lugs, load
Network Frequency:
50/60 Hz
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Ip Degree Of Protection:
front cover IP40 IEC 60529
Protected Poles Description:
3t
Ambient Air Temperature For Storage:
-50-85 °C
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
[Ith] Conventional Free Air Thermal Current:
30-80 A
Environmental Disclosure:
ENVPEP2206027EN
Circularity Profile:
ENVEOLI2206027EN
Mercury Free:
Yes
Continuous Current Rating:
0.8
Pollution Degree:
3 IEC 60947-1
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Mounting Support:
lug
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pvc Free:
Yes
Line Rated Current:
100-100 A
Quantity Per Set:
1
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Device Application:
distribution
Trip Unit Technology:
thermal-magnetic
Breaking Capacity:
125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Magnetic Tripping Current:
180-1040 A
