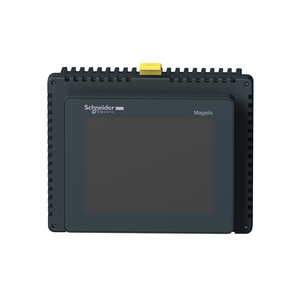

Schneider Electric HMISTU855 Touch Panel Screen 5"7 Color

Schneider Electric HMISTU855 Touch Panel Screen 5"7 Color

Schneider Electric
SKU:
HMISTU855
|
UPC:
3606489909499
$1,084.70
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
Additional Information
Width:
163 mm
Integrated Connection Type:
1 USB 2.0 type mini B || 1 USB 2.0 type A || COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s) || power supply - removable screw terminal block || 1 Ethernet - RJ45
Depth:
56.5 mm
Circularity Profile:
ENVEOLI2101003EN
Display Size:
5.7 inch
Memory Description:
application memory 16 MB || back up of data 64 kB
Product Certifications:
UL class 1 Div2 T4A ou T5 || C-tick || cULus || Marine || UKCA
Nema Degree Of Protection:
NEMA 4X front panel indoor use)
Supply:
external source
Sustainable Offer Status:
Green Premium product
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Realtime Clock:
access to the PLC real-time clock
Operating System:
Harmony
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Software Designation:
Vijeo Designer
Fixing Mode:
Ø 22 mm hole
[Us] Rated Supply Voltage:
24 V DC
Display Type:
QVGA TFT colour touchscreen
Marking:
with Schneider logo || CE
Processor Name:
CPU ARM9
Product Or Component Type:
touch panel screen
China Rohs Regulation:
X
Touch Panel:
analogue
Power Consumption In W:
6.8 W
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP2101003EN
Display Colour:
65536 colours
Brightness:
16 levels
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty:
18 months
Rohs Exemption Information:
Yes
Downloadable Protocols:
Uni-TE || Modbus TCP/IP || third party protocols || Modbus
Relative Humidity:
0-85 % without condensation
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Range Of Product:
Harmony STO & STU
Height:
129.15 mm
Backlight Lifespan:
50000 hours
Standards:
UL 1604 || FCC Class A || IEC 61000-6-2 || IEC 61131-2 || UL 508
Ambient Air Temperature For Storage:
-20-60 °C
Ip Degree Of Protection:
IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
Display Resolution:
320 x 240 pixels QVGA
Mercury Free:
Yes
Vibration Resistance:
+/- 3.5 mm 5-9 Hz) IEC 60068-2-6 || 1 gn 9-150 Hz) IEC 60068-2-6
Shock Resistance:
15 gn 11 msIEC 60068-2-27
Character Font:
Taiwanese (traditional Chinese) || Japanese (ANK, Kanji) || Chinese (simplified Chinese) || ASCII || Korean
Ambient Air Temperature For Operation:
0-50 °C
Operating Altitude:
<= 6561.68 ft (2000 m)
Processor Frequency:
333 MHz
Immunity To Microbreaks:
7 ms
Inrush Current:
30 A
Number Of Pages:
limited by internal memory capacity
Upgradeability:
Upgradeable through digital modules and upgraded components
Supply Voltage Limits:
20.4-28.8 V
Enclosure Material:
PC/PBT and PAA
