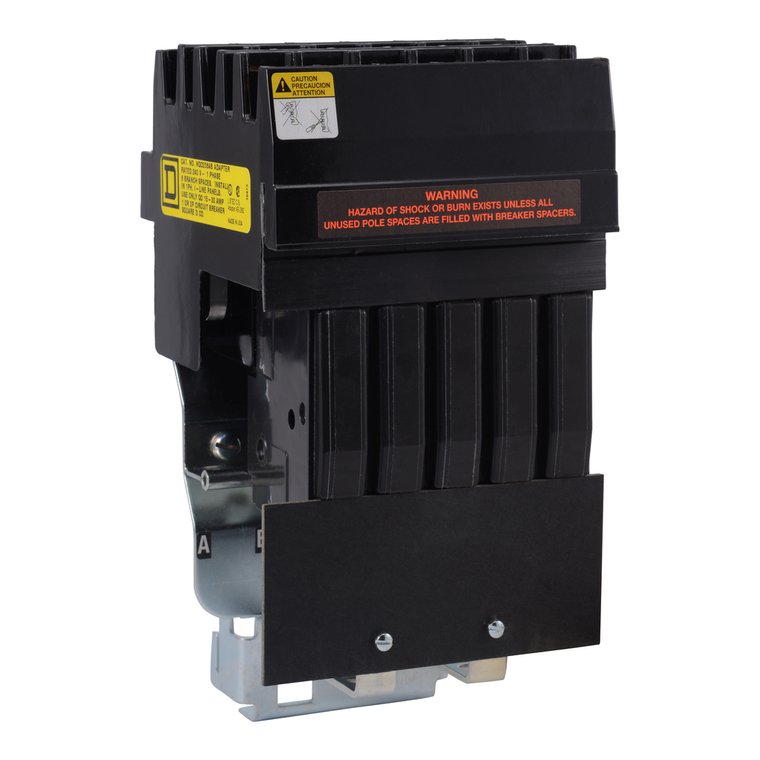

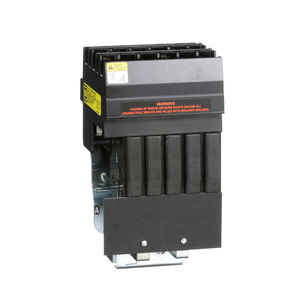

Schneider Electric HQO206AB Distribution Panel

Schneider Electric HQO206AB Distribution Panel

Schneider Electric
SKU:
HQO206AB
|
UPC:
785901650058
Availability:
Contact us to confirm availability and lead times.
$553.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
I-Line power distribution panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system of a large commercial or industrial facility. The I-Line power distribution panelboard has a circuit breaker engagement system and is used to feed NQ and NF panelboards. I-Line panelboards are capable of feeding large motor loads and are utilized in most every market segment. This QO distribution panel only mounts in HCM, HCP, HCP-SU or HCR-U I-Line panelboards. This QO distribution will accept up to six 30A single pole QO circuit breakers. This panel has a 240 VAC maximum rating. Panel provides 25 kA breaking capacity. It has an AB phase connection. The panel will accept 14 AWG or 12 AWG copper or aluminum wire.
Additional Information
Mercury Free:
Yes
Line Rated Current:
30 A
Eu Rohs Directive:
Compliant with Exemptions
Short-Circuit Current:
25 kA
Rohs Exemption Information:
Yes
Product Or Component Type:
panel
Number Of Spaces:
6
Warranty:
18 months
Awg Gauge:
AWG 14...AWG 12 copper or aluminium
Range Of Product:
QO
Ambient Air Temperature For Operation:
-5 °C || 40 °C
Circuit Breaker Type:
QO
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Phase Connection:
AB
Phase:
1 phase
Toxic Heavy Metal Free:
Yes
[Ue] Rated Operational Voltage:
120/240 V AC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive ha
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
