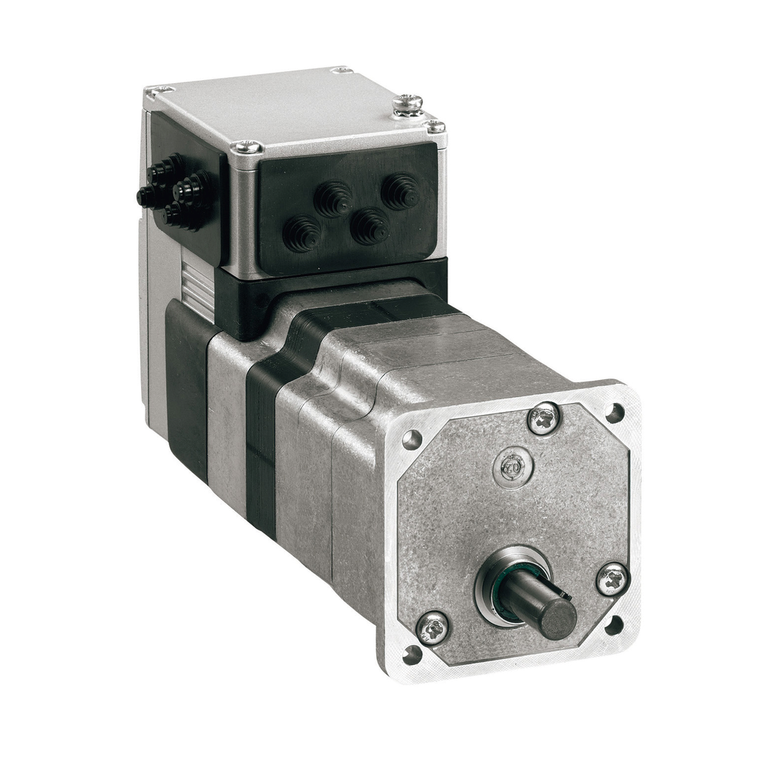

Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Discrete Input Current:
10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface
Winding Type:
medium speed of rotation and medium torque
Sustainable Offer Status:
Green Premium product
Supply Voltage Limits:
18-55.2 V
Discrete Output Voltage:
23...25 V
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circle Diameter Of The Mounting Holes:
73.54 mm
Maximum Torsional Backlash:
1 °
Phase:
single phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption Information:
Yes
Length:
174 mm
Nominal Torque:
7.3 N.m 24 V || 7.3 N.m 48 V
Motor Type:
brushless DC motor
Network Type:
DC
Peak Stall Torque:
13.07 N.m 24 V || 13.07 N.m 48 V
Ambient Air Temperature For Operation:
40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Commissioning Interface:
RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Holding Brake:
without
Reduction Ratio:
38:1 (75:2)
Warranty:
18 months
Maximum Supply Current:
0.1 A power stage disabled) || 6.8 A 24 V || 3.8 A 48 V
Centring Collar Diameter:
16 mm
Standards:
IEC 50347 || EN 61800-3 : 2001-02 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 61800-3 || IEC 61800-3, Ed 2 || IEC 50178
Environmental Disclosure:
ENVPEP1411012EN
Nominal Output Power:
119 W 48 V || 95 W 24 V
Current Consumption:
7000 mA peak || 5500 mA maximum continuous
Mounting Holes Diameter:
4.4 mm
Device Short Name:
ILE
Ambient Air Temperature For Storage:
-25-70 °C
Gear Box Type:
straight teeth gear, 3 stages
Shaft Length:
25 mm
Feedback Type:
BLDC encoder
Voltage State 0 Guaranteed:
-3...4.5 V
Speed Feedback Resolution:
12 points/turn motor || 0.8° gearbox output
Second Shaft:
without second shaft end
Mounting Support:
flange
Nominal Speed:
107 rpm 24 V || 133 rpm 48 V
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Shock Resistance:
150 m/s² 1000 shocks IEC 60068-2-29
Number Of Mounting Holes:
4
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
