Schneider Electric JDA262001 Molded Case Circuit Breaker 600V 200A
Schneider Electric
$2,283.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

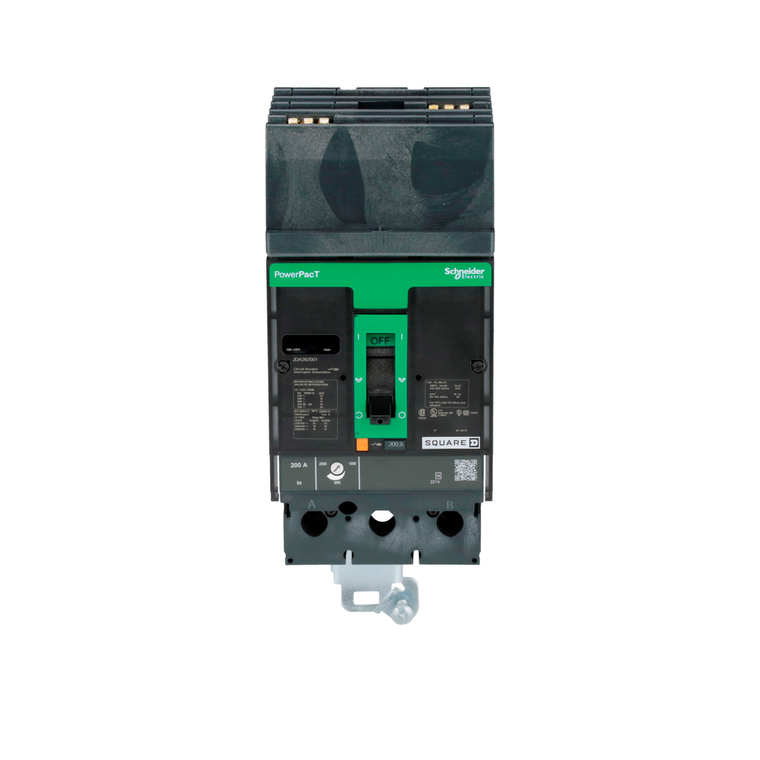

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 200A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Net Weight:
- 2.4 kg
- Control Type:
- toggle
- Electrical Connection:
- I-Line connection, line || lugs, load
- Mercury Free:
- Yes
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Ip Degree Of Protection:
- front cover IP40
- Poles Description:
- 2P
- Trip Unit Technology:
- thermal-magnetic
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Terminal Identifier:
- AL250JD
- Suitability For Isolation:
- yes IEC 60947-2
- Network Frequency:
- 50/60 Hz
- Protection Type:
- overload protection || short-circuit protection
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Ambient Air Temperature For Storage:
- -50-85 °C
- Circularity Profile:
- ENVEOLI2206031EN
- Ambient Air Temperature For Operation:
- -2-70 °C
- Continuous Current Rating:
- 0.8
- Quality Labels:
- CE
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Communication Interface:
- Modbus
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Environmental Disclosure:
- ENVPEP2206031EN
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Breaking Capacity Code:
- D
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Product Certifications:
- UL || CSA || NOM
- Product Or Component Type:
- circuit breaker
- Magnetic Tripping Current:
- 2000-2000 A
- Line Rated Current:
- 200-200 A
- Sustainable Offer Status:
- Green Premium product
- Mounting Mode:
- I-Line bracket)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Depth:
- 86 mm
- Phase Connection:
- AB
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Rohs Exemption Information:
- Yes
- Mounting Support:
- bracket
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Wire Stripping Length:
- 25 mm
- Pollution Degree:
- 3
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Mounting Height:
- 4.5 in
- Magnetic Hold Current:
- 1000 A
- Height:
- 191 mm
- Circuit Breaker Application:
- HACR rated
- Utilisation Category:
- category A
- Pvc Free:
- Yes
- Width:
- 104 mm
- Warranty:
- 18 months
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
