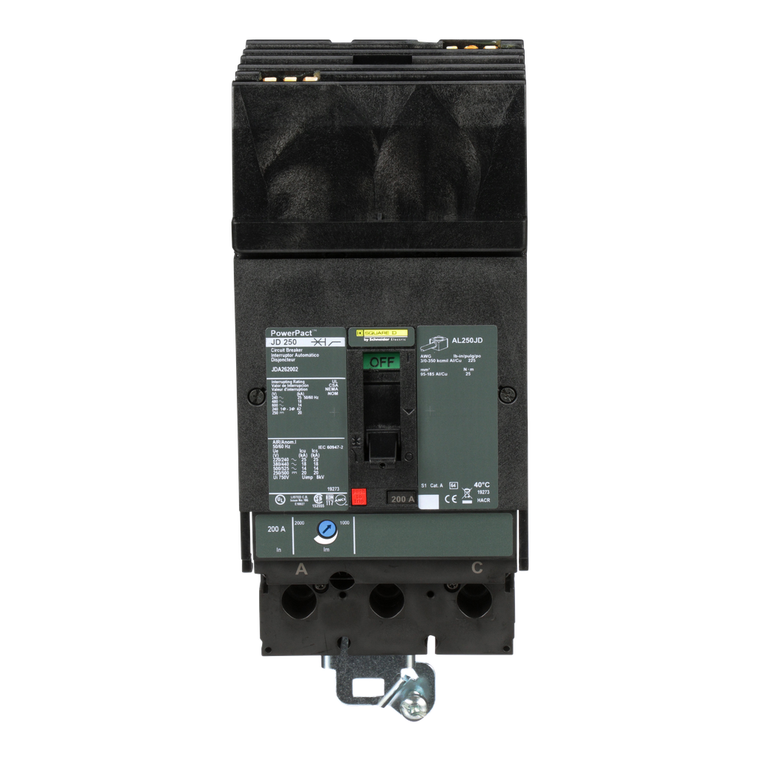

Schneider Electric JDA262002 Molded Case Circuit Breaker 600V 200A

(No reviews yet) Write a Review

Write a Review

Schneider Electric JDA262002 Molded Case Circuit Breaker 600V 200A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

JDA262002

UPC:

785901912378

MPN:

Condition:

New

Magnetic Hold Current:

1000 A

Mounting Support:

bracket

Circuit Breaker Application:

HACR rated

Rohs Exemption Information:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Utilisation Category:

category A

Wire Stripping Length:

25 mm

Circularity Profile:

ENVEOLI2206031EN

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Continuous Current Rating:

0.8

Line Rated Current:

200-200 A

Ambient Air Temperature For Operation:

-2-70 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Sustainable Offer Status:

Green Premium product

Height:

191 mm

Magnetic Tripping Current:

2000-2000 A

Electrical Connection:

I-Line connection, line || lugs, load

[Ics] Rated Service Breaking Capacity:

25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Long Time Pick-Up Adjustment Range:

0.25...1 x In

Tightening Torque:

25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)

Local Signalling:

switched off (OFF) 1 trip indicator green)

Pvc Free:

Yes

Mercury Free:

Yes

Phase Connection:

AC

Suitability For Isolation:

yes IEC 60947-2

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Net Weight:

2.4 kg

Quality Labels:

CE

Network Frequency:

50/60 Hz

Product Certifications:

UL || CSA || NOM

Breaking Capacity:

25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Pollution Degree:

3

Depth:

86 mm

Terminal Identifier:

AL250JD

Eu Rohs Directive:

Compliant with Exemptions

Mounting Mode:

I-Line bracket)

Environmental Disclosure:

ENVPEP2206031EN

Control Type:

toggle

Ambient Air Temperature For Storage:

-50-85 °C

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Communication Interface:

Modbus

Poles Description:

2P

Breaking Capacity Code:

D

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Ip Degree Of Protection:

front cover IP40

Trip Unit Technology:

thermal-magnetic

Awg Gauge:

AWG 3/0...350 kcmil aluminium/copper terminals

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz IEC 60947-3

Warranty:

18 months

Mounting Height:

4.5 in

Protection Type:

overload protection || short-circuit protection

Product Or Component Type:

circuit breaker
