Schneider Electric JDF36175 Molded Case Circuit Breaker 600V 175A
Schneider Electric
$2,730.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

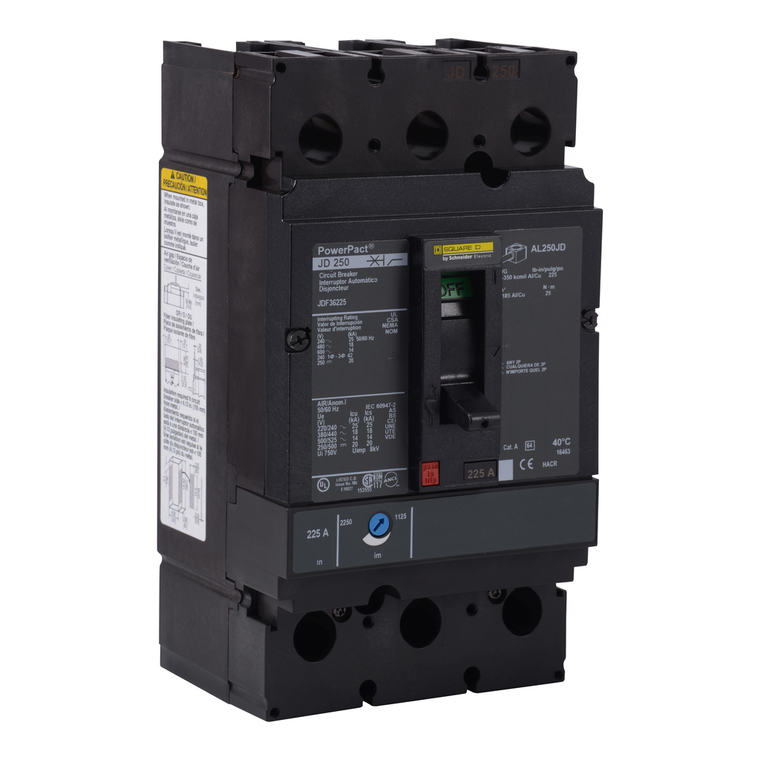

Schneider Electric JDF36175 Molded Case Circuit Breaker 600V 175A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT J, 175A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Awg Gauge:
- AWG 4...AWG 4/0 aluminium/copper terminal
- Ambient Air Temperature For Storage:
- -50-85 °C
- Wire Stripping Length:
- 25 mm
- Range:
- PowerPact
- Width:
- 104 mm
- Product Name:
- PowerPact J
- Mounting Mode:
- unit mount busbar)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Poles Description:
- 3P
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Trip Unit Technology:
- thermal-magnetic
- Ambient Air Temperature For Operation:
- -2-70 °C
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Utilisation Category:
- category A
- Magnetic Hold Current:
- 875 A
- Phase Connection:
- AB
- Line Rated Current:
- 175-175 A
- Product Or Component Type:
- circuit breaker
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Control Type:
- toggle
- Ip Degree Of Protection:
- front cover IP40
- Suitability For Isolation:
- yes IEC 60947-2
- Electrical Connection:
- busbar connection, line || busbar connection, load
- Network Frequency:
- 50/60 Hz
- Mounting Height:
- 4.5 in
- Net Weight:
- 2.4 kg
- Communication Interface:
- Modbus || Ethernet
- Pvc Free:
- Yes
- Tightening Torque:
- 25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circuit Breaker Application:
- HACR rated
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Environmental Disclosure:
- ENVPEP2206031EN
- Mounting Support:
- busbar
- Product Certifications:
- UL || CSA || NOM
- Protection Type:
- overload protection || short-circuit protection
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Device Application:
- distribution
- Sustainable Offer Status:
- Green Premium product
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Warranty:
- 18 months
- Breaking Capacity Code:
- D
- Circularity Profile:
- ENVEOLI2206031EN
- Continuous Current Rating:
- 0.8
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Height:
- 191 mm
- Pollution Degree:
- 3 IEC 60947-1
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Depth:
- 86 mm
- Quality Labels:
- CE
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Terminal Identifier:
- AL175JD
