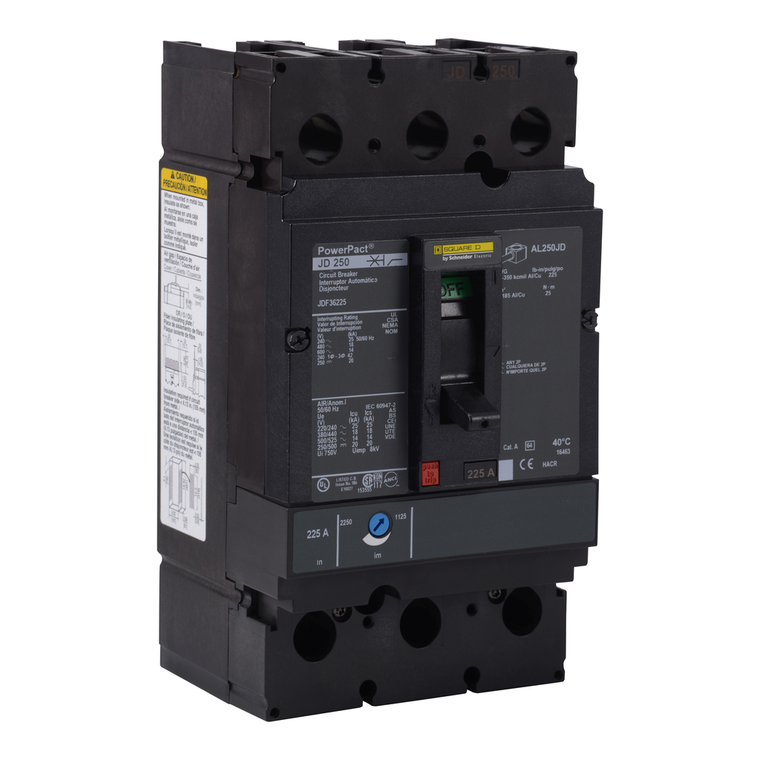

Schneider Electric JDF36250 Molded Case Circuit Breaker 600V 250A

(No reviews yet) Write a Review

Write a Review

Schneider Electric JDF36250 Molded Case Circuit Breaker 600V 250A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

JDF36250

UPC:

785901272410

MPN:

Condition:

New

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Ics] Rated Service Breaking Capacity:

25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Environmental Disclosure:

ENVPEP2206031EN

Eu Rohs Directive:

Compliant with Exemptions

Poles Description:

3P

Circularity Profile:

ENVEOLI2206031EN

Utilisation Category:

category A

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz IEC 60947-3

Mounting Mode:

unit mount busbar)

Control Type:

toggle

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Mounting Support:

busbar

Height:

191 mm

Range:

PowerPact

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Breaking Capacity Code:

D

Ip Degree Of Protection:

front cover IP40

Quality Labels:

CE

Device Application:

distribution

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Rohs Exemption Information:

Yes

Product Name:

PowerPact J

Electrical Connection:

busbar connection, line || busbar connection, load

Magnetic Tripping Current:

2500-2500 A

Wire Stripping Length:

25 mm

Mounting Height:

4.5 in

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Warranty:

18 months

Pvc Free:

Yes

Width:

104 mm

Breaking Capacity:

25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC

Continuous Current Rating:

0.8

Trip Unit Technology:

thermal-magnetic

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Circuit Breaker Application:

HACR rated

Communication Interface:

Modbus || Ethernet

Product Certifications:

UL || CSA || NOM

Suitability For Isolation:

yes IEC 60947-2

Pollution Degree:

3 IEC 60947-1

Network Frequency:

50/60 Hz

Local Signalling:

switched off (OFF) 1 trip indicator green)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Storage:

-50-85 °C

Net Weight:

2.4 kg

Terminal Identifier:

AL250JD

Depth:

86 mm

Mercury Free:

Yes

Long Time Pick-Up Adjustment Range:

0.25...1 x In

Line Rated Current:

250-250 A

Sustainable Offer Status:

Green Premium product

Tightening Torque:

25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)

Protection Type:

overload protection || short-circuit protection

Ambient Air Temperature For Operation:

-2-70 °C

Phase Connection:

AB

Magnetic Hold Current:

1250 A

Awg Gauge:

AWG 3/0...350 kcmil aluminium/copper terminals

Product Or Component Type:

circuit breaker

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
