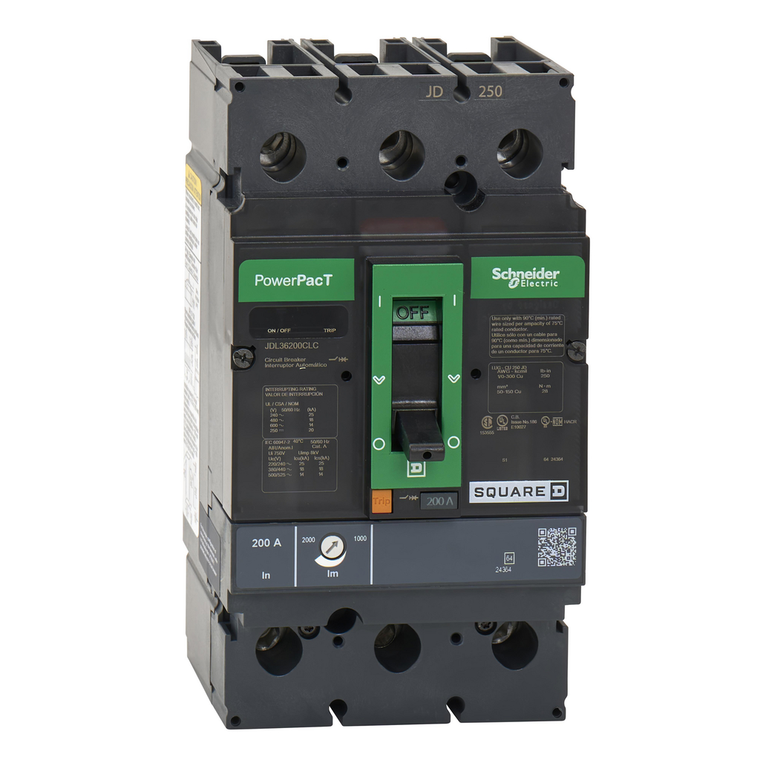

Schneider Electric JDL36200CLC Molded Case Circuit Breaker 600V 200A
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 200A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 100%. This unit includes copper lugs. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Ambient Air Temperature For Operation:
- -2-70 °C
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- circuit breaker
- Depth:
- 86 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- [Ics] Rated Service Breaking Capacity:
- 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Accessory / Separate Part Type:
- copper lug
- Range:
- PowerPact
- Ip Degree Of Protection:
- front cover IP40
- Device Application:
- distribution
- Ambient Air Temperature For Storage:
- -50-85 °C
- Protection Type:
- overload protection || short-circuit protection
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Eu Rohs Directive:
- Compliant with Exemptions
- Network Frequency:
- 50/60 Hz
- Warranty:
- 18 months
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Continuous Current Rating:
- 1
- Net Weight:
- 2.4 kg
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Breaking Capacity Code:
- D
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Quality Labels:
- CE
- Utilisation Category:
- category A
- Pollution Degree:
- 3 IEC 60947-1
- Breaking Capacity:
- 25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Communication Interface:
- Modbus || Ethernet
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Circularity Profile:
- ENVEOLI2206031EN
- Product Name:
- PowerPact J
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Electrical Connection:
- lugs, line || lugs, load
- Mounting Support:
- lug
- Circuit Breaker Application:
- HACR rated
- Sustainable Offer Status:
- Green Premium product
- Suitability For Isolation:
- yes IEC 60947-2
- Line Rated Current:
- 200-200 A
- Trip Unit Technology:
- thermal-magnetic
- Width:
- 104 mm
- Magnetic Tripping Current:
- 2000-2000 A
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Magnetic Hold Current:
- 1000 A
- Control Type:
- toggle
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Environmental Disclosure:
- ENVPEP2206031EN
- Wire Stripping Length:
- 25 mm
- Mercury Free:
- Yes
- Terminal Identifier:
- AL250JD
- Product Certifications:
- UL || CSA || NOM
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Pvc Free:
- Yes
- Mounting Mode:
- unit mount lug)
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Poles Description:
- 3P
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Height:
- 191 mm
