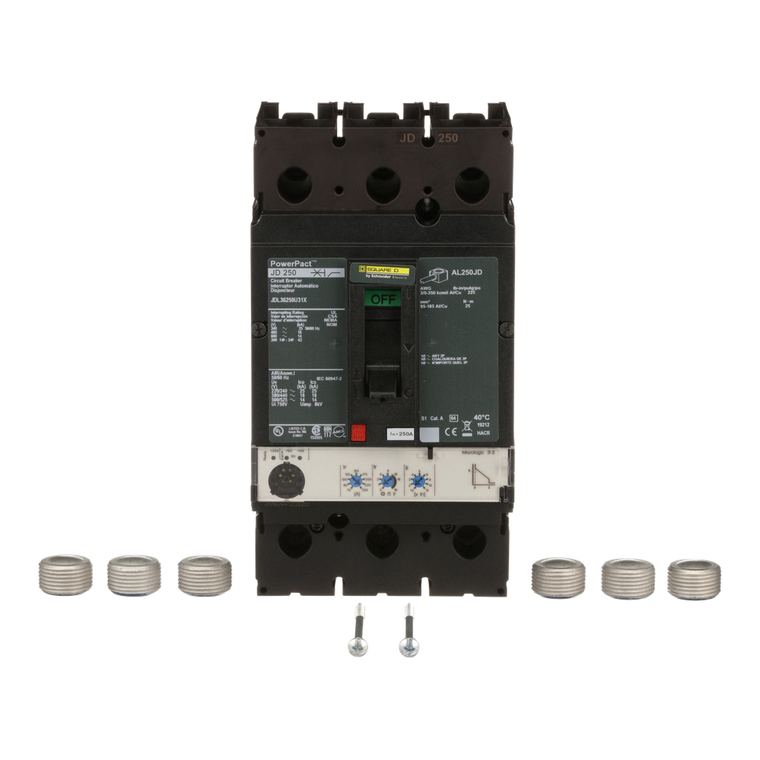

Schneider Electric JDL36250U31X Molded Case Circuit Breaker 600V 250A

Schneider Electric JDL36250U31X Molded Case Circuit Breaker 600V 250A

Schneider Electric
SKU:
JDL36250U31X
|
UPC:
785901746072
Availability:
Contact us to confirm availability and lead times.
$2,957.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Depth:
86 mm
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz || 14 kA 600 V AC 50/60 Hz || 20 kA 250 V DC
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Rohs Exemption Information:
Yes
Trip Unit Technology:
electronic, standard, MicroLogic 3.2, LI
Protection Type:
overload protection || short-circuit protection
Electrical Connection:
lugs, line || lugs, load
Terminal Identifier:
AL250JD
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation:
-2-70 °C
Breaking Capacity Code:
D
Height:
191 mm
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Product Certifications:
UL || CSA || NOM
Phase Connection:
ABC
Network Frequency:
50/60 Hz
Product Name:
PowerPact J
Ip Degree Of Protection:
front cover IP40
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Poles Description:
3P
Trip Unit Name:
MicroLogic 3.2
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
Mounting Support:
lug
Sustainable Offer Status:
Green Premium product
Mercury Free:
Yes
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Circuit Breaker Application:
HACR rated
Range:
PowerPact
Quality Labels:
CE
Suitability For Isolation:
yes IEC 60947-2
Mounting Mode:
unit mount lug)
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm 1 LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Circularity Profile:
ENVEOLI2206032EN
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Communication Interface:
Modbus || Ethernet
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Product Or Component Type:
circuit breaker
Line Rated Current:
250-250 A
Ambient Air Temperature For Storage:
-50-85 °C
Environmental Disclosure:
ENVPEP2206032EN
Width:
104 mm
Control Type:
toggle
Device Application:
distribution
Continuous Current Rating:
0.8
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Pollution Degree:
3 IEC 60947-1
Pvc Free:
Yes
Utilisation Category:
category A
Warranty:
18 months
Net Weight:
2.4 kg
Wire Stripping Length:
25 mm
Mounting Height:
4.5 in
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Eu Rohs Directive:
Compliant with Exemptions
