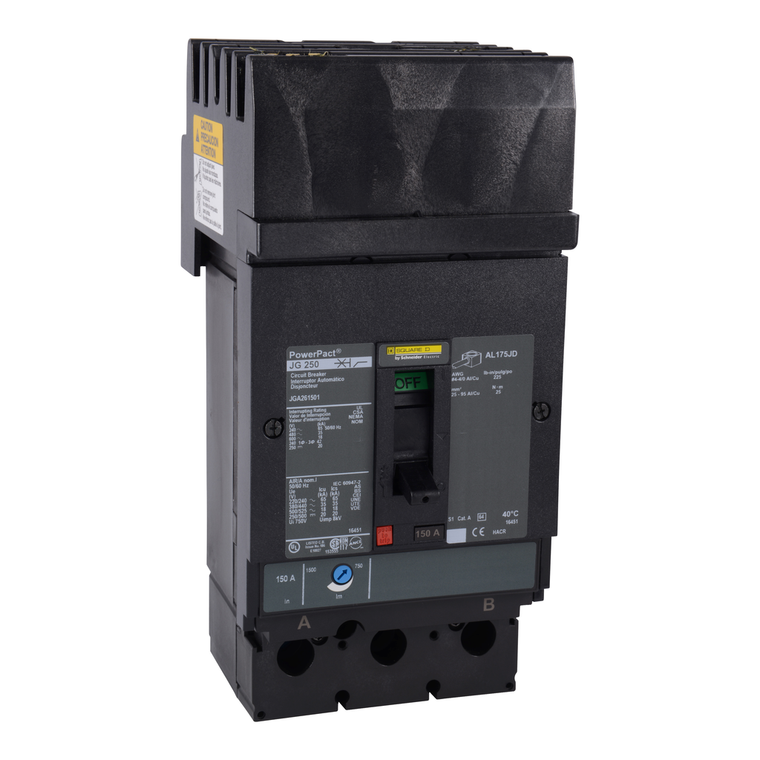

Schneider Electric JGA262001 Molded Case Circuit Breaker 600V 200A

(No reviews yet) Write a Review

Write a Review

Schneider Electric JGA262001 Molded Case Circuit Breaker 600V 200A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

JGA262001

UPC:

785901431039

MPN:

Condition:

New

Eu Rohs Directive:

Compliant with Exemptions

Width:

104 mm

Device Application:

distribution

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Mounting Support:

bracket

Utilisation Category:

category A

Depth:

86 mm

Ambient Air Temperature For Operation:

-2-70 °C

Awg Gauge:

AWG 3/0...350 kcmil aluminium/copper terminals

Tightening Torque:

25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)

Magnetic Tripping Current:

2000-2000 A

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Trip Unit Technology:

thermal-magnetic

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Breaking Capacity Code:

G

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz IEC 60947-3

Environmental Disclosure:

ENVPEP2206031EN

Control Type:

toggle

Pollution Degree:

3 IEC 60947-1

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Storage:

-50-85 °C

Continuous Current Rating:

0.8

Height:

191 mm

Pvc Free:

Yes

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Rohs Exemption Information:

Yes

Local Signalling:

switched off (OFF) 1 trip indicator green)

Breaking Capacity:

65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489

Phase Connection:

AB

Communication Interface:

Modbus || Ethernet

Suitability For Isolation:

yes IEC 60947-2

Mounting Mode:

I-Line bracket)

Protection Type:

overload protection || short-circuit protection

Warranty:

18 months

Mounting Height:

4.5 in

Magnetic Hold Current:

1000 A

Ip Degree Of Protection:

front cover IP40

Wire Stripping Length:

25 mm

Network Frequency:

50/60 Hz

Net Weight:

2.4 kg

Product Name:

PowerPact J

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Product Certifications:

UL || CSA || NOM

Quality Labels:

CE

Poles Description:

2P

Long Time Pick-Up Adjustment Range:

0.25...1 x In

Range:

PowerPact

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Line Rated Current:

200-200 A

Electrical Connection:

I-Line connection, line || lugs, load

Terminal Identifier:

AL250JD

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Sustainable Offer Status:

Green Premium product

Mercury Free:

Yes

Circularity Profile:

ENVEOLI2206031EN
