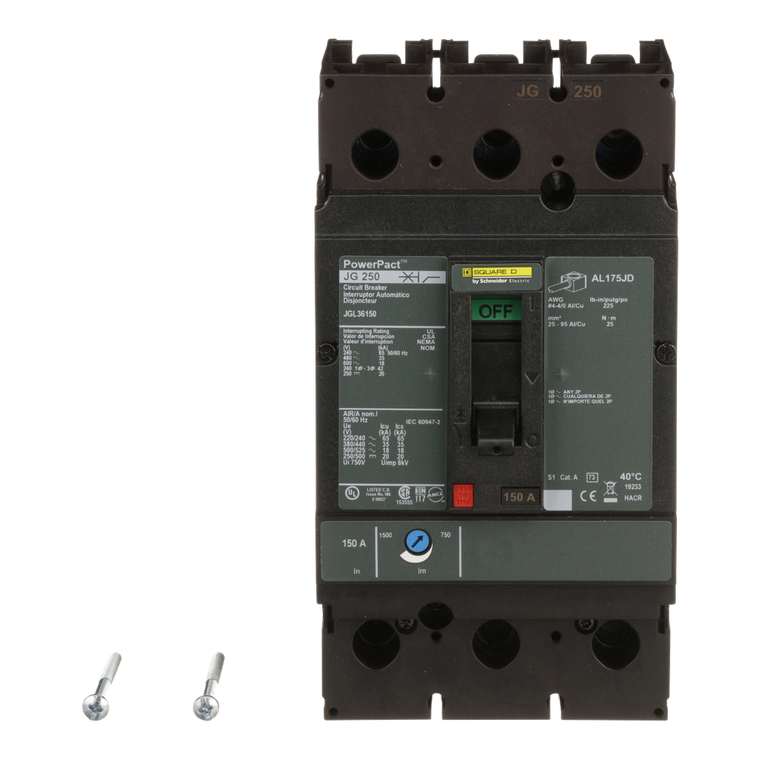

Schneider Electric JGL36150 Molded Case Circuit Breaker 600V 150A
Schneider Electric
$3,779.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 150A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Mounting Height:
- 4.5 in
- Warranty:
- 18 months
- Magnetic Hold Current:
- 750 A
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Mercury Free:
- Yes
- Mounting Support:
- lug
- Suitability For Isolation:
- yes IEC 60947-2
- Quality Labels:
- CE
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Sustainable Offer Status:
- Green Premium product
- Phase Connection:
- CA
- Pvc Free:
- Yes
- Device Application:
- distribution
- Terminal Identifier:
- AL175JD
- Circularity Profile:
- ENVEOLI2206031EN
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Trip Unit Technology:
- thermal-magnetic
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Ambient Air Temperature For Storage:
- -50-85 °C
- Awg Gauge:
- AWG 4...AWG 4/0 aluminium/copper terminal
- Wire Stripping Length:
- 25 mm
- Protection Type:
- overload protection || short-circuit protection
- Communication Interface:
- Modbus || Ethernet
- Tightening Torque:
- 25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
- Network Frequency:
- 50/60 Hz
- Height:
- 191 mm
- Product Or Component Type:
- circuit breaker
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Circuit Breaker Application:
- HACR rated
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Range:
- PowerPact
- Product Certifications:
- UL || CSA || NOM
- Environmental Disclosure:
- ENVPEP2206031EN
- Ip Degree Of Protection:
- front cover IP40
- Width:
- 104 mm
- Electrical Connection:
- lugs, line || lugs, load
- Utilisation Category:
- category A
- Pollution Degree:
- 3 IEC 60947-1
- Mounting Mode:
- unit mount lug)
- Depth:
- 86 mm
- Ambient Air Temperature For Operation:
- -2-70 °C
- Control Type:
- toggle
- Net Weight:
- 2.4 kg
- Breaking Capacity Code:
- G
- Magnetic Tripping Current:
- 1750-1750 A
- Line Rated Current:
- 150-150 A
- Product Name:
- PowerPact J
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Poles Description:
- 3P
- Continuous Current Rating:
- 0.8
