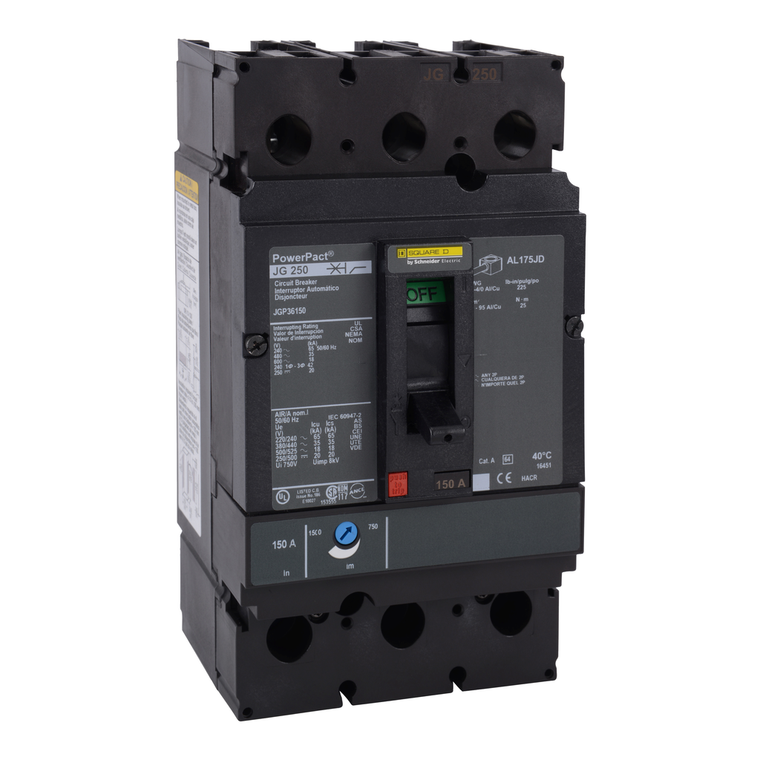

Schneider Electric JGP36150 Molded Case Circuit Breaker 600V 150A

Schneider Electric JGP36150 Molded Case Circuit Breaker 600V 150A

Schneider Electric
SKU:
JGP36150
|
UPC:
785901526056
$3,779.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This unit has terminal nuts on the line side and lugs on the load side. This PowerPacT J, 150A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Mounting Mode:
unit mount lug)
Pollution Degree:
3 IEC 60947-1
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Awg Gauge:
AWG 4...AWG 4/0 aluminium/copper terminal
Magnetic Hold Current:
750 A
Device Application:
distribution
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Control Type:
toggle
Breaking Capacity Code:
G
Wire Stripping Length:
25 mm
Pvc Free:
Yes
Communication Interface:
Modbus || Ethernet
Continuous Current Rating:
0.8
Environmental Disclosure:
ENVPEP2206031EN
Poles Description:
3P
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Mounting Support:
lug
Height:
191 mm
Warranty:
18 months
Utilisation Category:
category A
Depth:
86 mm
Product Name:
PowerPact J
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Tightening Torque:
25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
Product Or Component Type:
circuit breaker
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Electrical Connection:
terminal nut, line || lugs, load
Magnetic Tripping Current:
1750-1750 A
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Net Weight:
2.4 kg
Terminal Identifier:
AL175JD
Ambient Air Temperature For Storage:
-50-85 °C
Breaking Capacity:
65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Trip Unit Technology:
thermal-magnetic
Range:
PowerPact
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Quality Labels:
CE
Network Frequency:
50/60 Hz
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Width:
104 mm
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
-2-70 °C
Product Certifications:
UL || CSA || NOM
Local Signalling:
switched off (OFF) 1 trip indicator green)
Mercury Free:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Protection Type:
overload protection || short-circuit protection
Ip Degree Of Protection:
front cover IP40
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Line Rated Current:
150-150 A
Circuit Breaker Application:
HACR rated
Suitability For Isolation:
yes IEC 60947-2
Circularity Profile:
ENVEOLI2206031EN
