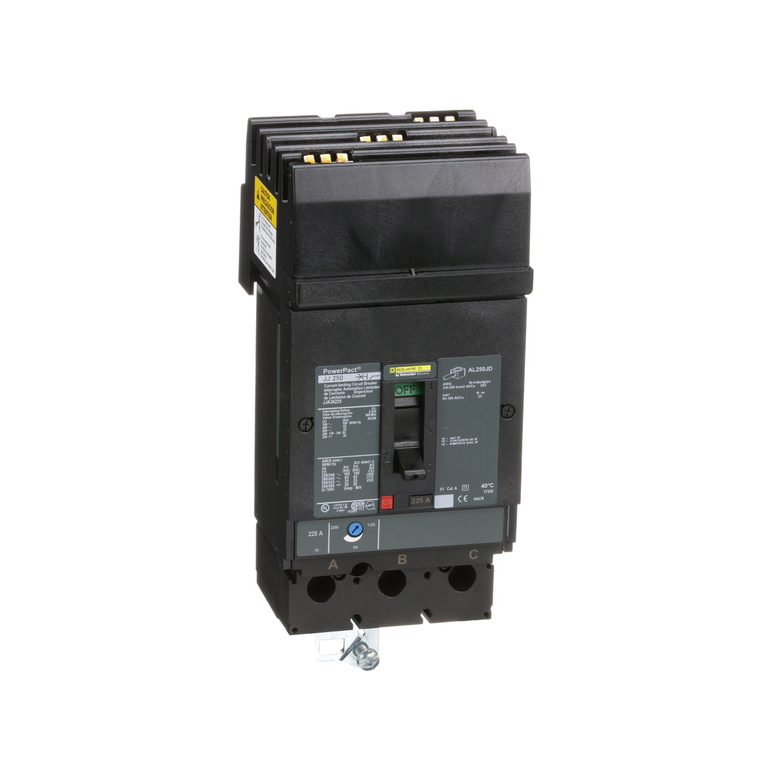

Schneider Electric JJA36225 Molded Case Circuit Breaker 600V 225A
Schneider Electric
$5,705.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 225A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Environmental Disclosure:
- ENVPEP2206031EN
- Electrical Connection:
- I-Line connection, line || lugs, load
- Control Type:
- toggle
- Communication Interface:
- Modbus || Ethernet
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Net Weight:
- 2.4 kg
- Sustainable Offer Status:
- Green Premium product
- Mounting Support:
- bracket
- Suitability For Isolation:
- yes IEC 60947-2
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Breaking Capacity Code:
- J
- Range:
- PowerPact
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Product Name:
- PowerPact J
- Ambient Air Temperature For Storage:
- -50-85 °C
- Magnetic Tripping Current:
- 2250-2250 A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Network Frequency:
- 50/60 Hz
- Pvc Free:
- Yes
- Mounting Mode:
- I-Line bracket)
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Ambient Air Temperature For Operation:
- -2-70 °C
- Phase Connection:
- ABC
- Circuit Breaker Application:
- HACR rated
- Terminal Identifier:
- AL250JD
- Width:
- 104 mm
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Pollution Degree:
- 3 IEC 60947-1
- Tightening Torque:
- 25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Height:
- 191 mm
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Mounting Height:
- 4.5 in
- Protection Type:
- overload protection || short-circuit protection
- Magnetic Hold Current:
- 1125 A
- Depth:
- 86 mm
- Product Certifications:
- UL || CSA || NOM
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Awg Gauge:
- AWG 3/0...350 kcmil aluminium/copper terminals
- Circularity Profile:
- ENVEOLI2206031EN
- Ip Degree Of Protection:
- front cover IP40
- Mercury Free:
- Yes
- Product Or Component Type:
- circuit breaker
- Warranty:
- 18 months
- Device Application:
- distribution
- Rohs Exemption Information:
- Yes
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Quality Labels:
- CE
- Utilisation Category:
- category A
- Trip Unit Technology:
- thermal-magnetic
- Continuous Current Rating:
- 0.8
- Wire Stripping Length:
- 25 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Compliant with Exemptions
- Line Rated Current:
- 225-225 A
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Poles Description:
- 3P
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
