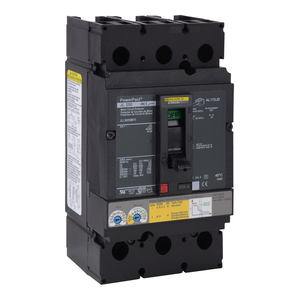

Schneider Electric JJL36250M75AA Motor Circuit Protector 600V 250A

Schneider Electric JJL36250M75AA Motor Circuit Protector 600V 250A

Schneider Electric
SKU:
JJL36250M75AA
|
UPC:
785901865025
Availability:
Contact us to confirm availability and lead times.
$2,690.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT J-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as the PowerPacT J circuit breakers. This unit has lugs on both the line and load side. This unit includes a factory installed 1A/1B auxiliary switch. This PowerPacT J, 250A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. The breaker has a continuous current rating of 80%. PowerPacT J motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Additional Information
Utilisation Category:
category A
Width:
104 mm
Line Rated Current:
250-250 A
Warranty:
18 months
Network Frequency:
50/60 Hz
Mounting Support:
lug
Eu Rohs Directive:
Compliant with Exemptions
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Rohs Exemption Information:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Electrical Connection:
lugs, line || lugs, load
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Continuous Current Rating:
0.8
Tightening Torque:
25-25 N.m 95-185 mm² (AWG 3/0...350 kcmil)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Wire Stripping Length:
25 mm
Magnetic Tripping Current:
2500-2500 A
Height:
191 mm
Poles Description:
3P
Ip Degree Of Protection:
front cover IP40
Accessory / Separate Part Type:
auxiliary switch 24 V AC/DC 1 NO + 1 NC cover frame
Environmental Disclosure:
ENVPEP2206031EN
Pollution Degree:
3
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Pvc Free:
Yes
[Ith] Conventional Free Air Thermal Current:
117-217 A
Product Or Component Type:
Motor Circuit Protector
Magnetic Hold Current:
1250 A
Communication Interface:
Modbus
Breaking Capacity Code:
J
Ambient Air Temperature For Storage:
-50-85 °C
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Depth:
86 mm
Control Type:
toggle
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Awg Gauge:
AWG 3/0...350 kcmil aluminium/copper terminals
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Sustainable Offer Status:
Green Premium product
Quality Labels:
CE
Net Weight:
2.4 kg
Terminal Identifier:
AL250JD
Product Certifications:
UL || CSA || NOM
Suitability For Isolation:
yes IEC 60947-2
Circularity Profile:
ENVEOLI2206031EN
Mounting Mode:
unit mount lug)
Local Signalling:
switched off (OFF) 1 trip indicator green)
Protection Type:
overload protection || short-circuit protection
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Mercury Free:
Yes
Trip Unit Technology:
thermal-magnetic
Ambient Air Temperature For Operation:
-2-70 °C
