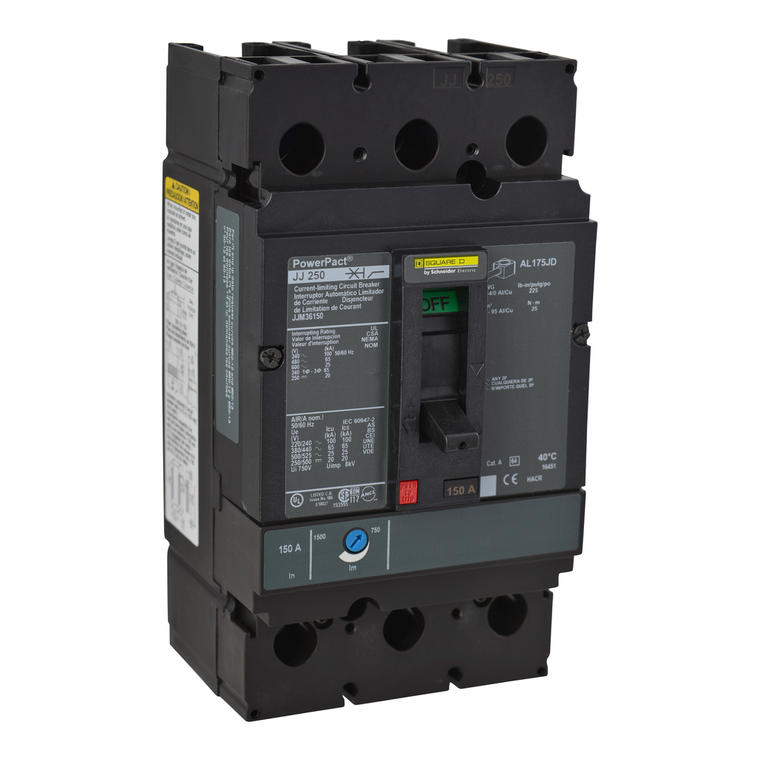

Schneider Electric JJM36150 Molded Case Circuit Breaker 600V 150A
Schneider Electric
$8,148.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric JJM36150 Molded Case Circuit Breaker 600V 150A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on the line side and terminal nuts on the load side. This PowerPacT J, 150A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Ip Degree Of Protection:
- front cover IP40
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Control Type:
- toggle
- Ambient Air Temperature For Operation:
- -2-70 °C
- Tightening Torque:
- 25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
- Eu Rohs Directive:
- Compliant
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Mounting Mode:
- unit mount lug)
- Warranty:
- 18 months
- Magnetic Tripping Current:
- 1750-1750 A
- Product Or Component Type:
- circuit breaker
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Product Certifications:
- UL || CSA || NOM
- Environmental Disclosure:
- ENVPEP1311008EN
- Depth:
- 86 mm
- Communication Interface:
- Modbus
- Net Weight:
- 2.4 kg
- Pvc Free:
- Yes
- Awg Gauge:
- AWG 4...AWG 4/0 aluminium/copper terminal
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Trip Unit Technology:
- thermal-magnetic
- Circularity Profile:
- ENVEOLI1311008
- Suitability For Isolation:
- yes IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Line Rated Current:
- 150-150 A
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Pollution Degree:
- 3
- Wire Stripping Length:
- 25 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Magnetic Hold Current:
- 750 A
- Ambient Air Temperature For Storage:
- -50-85 °C
- Rohs Exemption Information:
- Yes
- Electrical Connection:
- lugs, line || terminal nut, load
- Sustainable Offer Status:
- Green Premium product
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Quality Labels:
- CE
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Protection Type:
- overload protection || short-circuit protection
- Continuous Current Rating:
- 0.8
- Utilisation Category:
- category A
- Height:
- 191 mm
- Terminal Identifier:
- AL175JD
- Width:
- 104 mm
- Network Frequency:
- 50/60 Hz
- Circuit Breaker Application:
- HACR rated
- Poles Description:
- 3P
- Breaking Capacity Code:
- J
- Mounting Support:
- lug
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
