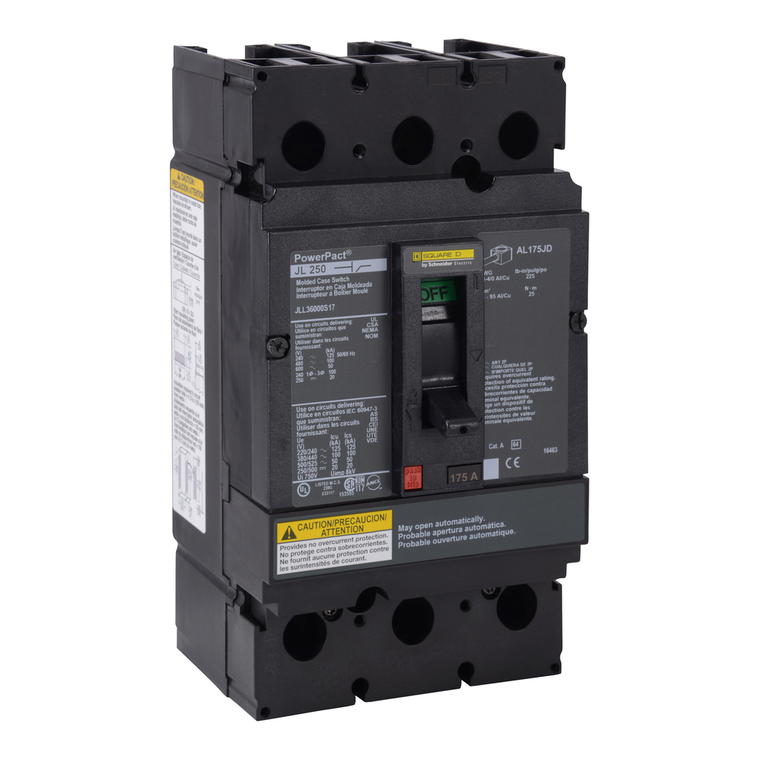

Schneider Electric JLL36000S17 Automatic Molded Case Switch 600V 175A
Schneider Electric
$2,475.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the J-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT J-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch has lugs on both the line and load sides. This PowerPacT J, 175A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT J automatic switches comply to UL and CSA standards.
- Circuit Breaker Type:
- J-frame
- Pvc Free:
- Yes
- Line Rated Current:
- 175 A
- Environmental Disclosure:
- ENVPEP2206031EN
- Awg Gauge:
- x AWG 4...AWG 4/0 ( aluminium/copper )
- Trip Unit Technology:
- magnetic
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Depth:
- 5 in
- Magnetic Tripping Current:
- 3125-3125 A
- Short-Circuit Withstand:
- 125 kA 240 V UL 489 || 100 kA 480 V UL 489 || 50 kA 600 V UL 489
- Tightening Torque:
- 26-26 N.m 25-95 mm² (AWG 4...AWG 4/0)
- Warranty:
- 18 months
- Poles Description:
- 3P
- Product Or Component Type:
- automatic switch
- Width:
- 2.74 in
- Mounting Mode:
- unit mount
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Terminal Identifier:
- AL175JD
- Circularity Profile:
- ENVEOLI2206031EN
- Eu Rohs Directive:
- Compliant with Exemptions
- Mercury Free:
- Yes
- Electrical Connection:
- lugs, line || lugs, load
- Breaking Capacity Code:
- L
- Height:
- 7.52 in
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Range Of Product:
- PowerPact J
- [Ue] Rated Operational Voltage:
- 600 V AC
- Product Certifications:
- UL Listed || IEC || CSA
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
