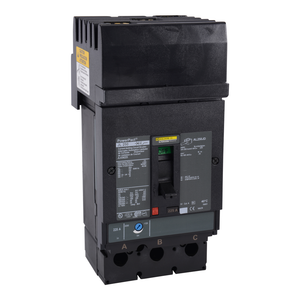

Schneider Electric JLP36175 Molded Case Circuit Breaker 600V 175A
Schneider Electric
$7,086.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This unit has terminal nuts on the line side and lugs on the load side. This PowerPacT J, 175A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Rohs Exemption Information:
- Yes
- Mounting Support:
- lug
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Control Type:
- toggle
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Width:
- 104 mm
- Quality Labels:
- CE
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Storage:
- -50-85 °C
- Height:
- 191 mm
- Wire Stripping Length:
- 25 mm
- Trip Unit Technology:
- thermal-magnetic
- Pollution Degree:
- 3
- Awg Gauge:
- AWG 4...AWG 4/0 aluminium/copper terminal
- Protection Type:
- overload protection || short-circuit protection
- Circuit Breaker Application:
- HACR rated
- Breaking Capacity Code:
- L
- Tightening Torque:
- 25-25 N.m 25-95 mm² (AWG 4...AWG 4/0)
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Mercury Free:
- Yes
- Network Frequency:
- 50/60 Hz
- Continuous Current Rating:
- 0.8
- Utilisation Category:
- category A
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Line Rated Current:
- 175-175 A
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Terminal Identifier:
- AL175JD
- Product Or Component Type:
- circuit breaker
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Mounting Mode:
- unit mount lug)
- Magnetic Hold Current:
- 875 A
- Eu Rohs Directive:
- Compliant with Exemptions
- Magnetic Tripping Current:
- 1750-1750 A
- Product Certifications:
- UL || CSA || NOM
- Ip Degree Of Protection:
- front cover IP40
- Poles Description:
- 3P
- Depth:
- 86 mm
- Communication Interface:
- Modbus
- Environmental Disclosure:
- ENVPEP2206031EN
- Suitability For Isolation:
- yes IEC 60947-2
- Net Weight:
- 2.4 kg
- Warranty:
- 18 months
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Electrical Connection:
- terminal nut, line || lugs, load
- Breaking Capacity:
- 125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
- Circularity Profile:
- ENVEOLI2206031EN
- Ambient Air Temperature For Operation:
- -2-70 °C
- Pvc Free:
- Yes
- [Ics] Rated Service Breaking Capacity:
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
