Schneider Electric KAXZ1S142 Key Switch Head 421
Schneider Electric
$135.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

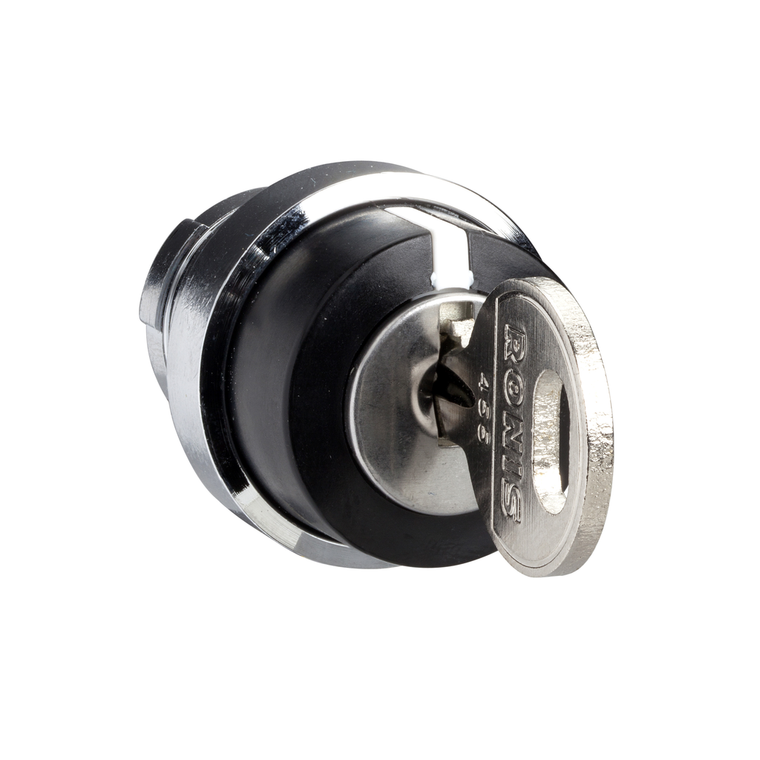

Schneider Electric KAXZ1S142 Key Switch Head 421
Cam switch operating head, Harmony K, 22mm, metal, circular 29mm, key operated 45°, Ronis 421
- Toxic Heavy Metal Free:
- Yes
- Vibration Resistance:
- 5 gn 10-150 Hz)IEC 68-2-6
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- cam switch operating head
- Product Compatibility:
- front mounting bodies 12 and 20 A Ã 22 mm hole
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP65 conforming to IEC 529 || IP65 conforming to NF C 20-010
- Switching Angle:
- 45 °
- Range Of Product:
- Harmony Series K
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Ambient Air Temperature For Operation:
- -25-55 °C
- Cam Switch Head Type:
- with bezel à 28.5 mm, metal
- Type Of Operator:
- key key 421
- Shock Resistance:
- 30 gn IEC 68-2-27
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Presentation Of Legend:
- with mat black
- Net Weight:
- 0.065 kg
- Protective Treatment:
- TC
- China Rohs Regulation:
- X
- Mechanical Durability:
- 1000000 cycles
- Rotary Handle Padlocking:
- without
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- Compatibility Code:
- KAX
- Component Name:
- KAX
- Datasheet:
- View
