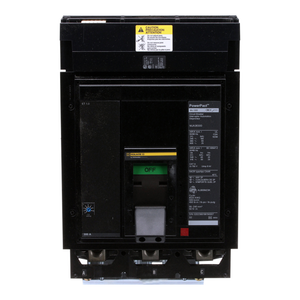

Schneider Electric LA36300 Molded Case Circuit Breaker 600V 300A

Schneider Electric LA36300 Molded Case Circuit Breaker 600V 300A

Schneider Electric
SKU:
LA36300
|
UPC:
785901426240
Availability:
Contact us to confirm availability and lead times.
$4,944.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Square D-brand I-Line circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. I-Line circuit breakers, with their exclusive bus connection design, provide superior reliability and performance advantages. A wide variety of accessories are available for field or factory installation of I-Line panelboards. This I-Line, 3P, circuit breaker has a 300A rated current. This breaker has a breaking capacity of 22 kA@600 VAC operation voltage. This breaker has a thermal-magnetic trip technology. The dimensions are 11 in (H), 6 in (W), 5.84 in (D).
Additional Information
Mercury Free:
Yes
Magnetic Tripping Current:
3000-3000 A
Width:
6 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Circuit Breaker Application:
HACR rated
Terminal Identifier:
AL400LA
Line Rated Current:
300 A
Circularity Profile:
N/A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Magnetic Hold Current:
1500 A
Product Certifications:
UL Listed || CSA
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
circuit breaker
Mounting Mode:
I-Line
Halogen Content Performance:
Halogen free plastic parts product
Electrical Connection:
lugs, load || I-Line connection, line
Depth:
5.84 in
Wiring Configuration:
3-wire
Warranty:
18 months
Pvc Free:
Yes
Sustainable Offer Status:
Green Premium product
Height:
11 in
Rohs Exemption Information:
Yes
Poles Description:
3P
Eu Rohs Directive:
Compliant with Exemptions
Breaking Capacity Code:
A
Trip Unit Technology:
thermal-magnetic
Environmental Disclosure:
ENVPEP1410004EN
Datasheet:
View
