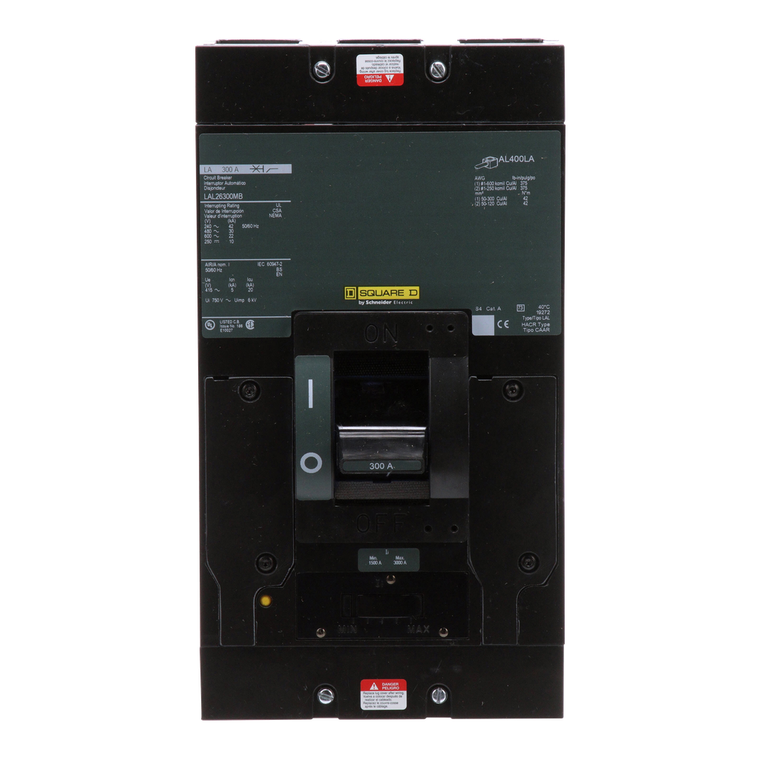

Schneider Electric LAL26300MB Molded Case Circuit Breaker 600V 300A

(No reviews yet) Write a Review
SKU:
LAL26300MB
UPC:
785901205142
Condition:
New
Eu Rohs Directive:
Compliant with Exemptions
Depth:
5.84 in
Sustainable Offer Status:
Green Premium product
Height:
11 in
Warranty:
18 months
Poles Description:
2P
Halogen Content Performance:
Halogen free plastic parts product
Operator Profile:
short lever
Environmental Disclosure:
ENVPEP1410004EN
Circularity Profile:
N/A
Magnetic Hold Current:
1500 A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circuit Breaker Application:
HACR rated
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Product Certifications:
CSA || UL Listed || IEC
Line Rated Current:
300 A
Width:
6 in
Tightening Torque:
13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
Electrical Connection:
lugs, load || lugs, line
Rohs Exemption Information:
Yes
Pvc Free:
Yes
Trip Unit Technology:
thermal-magnetic
Mounting Mode:
unit mount
Mercury Free:
Yes
Terminal Identifier:
AL400LA
Magnetic Tripping Current:
3000-3000 A
Product Or Component Type:
circuit breaker
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Catalog:
View
Datasheet:
View
  • Schneider Electric LAL26300MB Molded Case Circuit Breaker 600V 300A
  • Schneider Electric LAL26300MB Molded Case Circuit Breaker 600V 300A
  • Schneider Electric LAL26300MB Molded Case Circuit Breaker 600V 300A
$3,807.00

Description

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 2 pole unit mount breaker, 300A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker MB suffix indicates a panel main breaker and has a shorter handle so that the panel door can close. LA breakers are UL 489, CSA, IEC certified.
