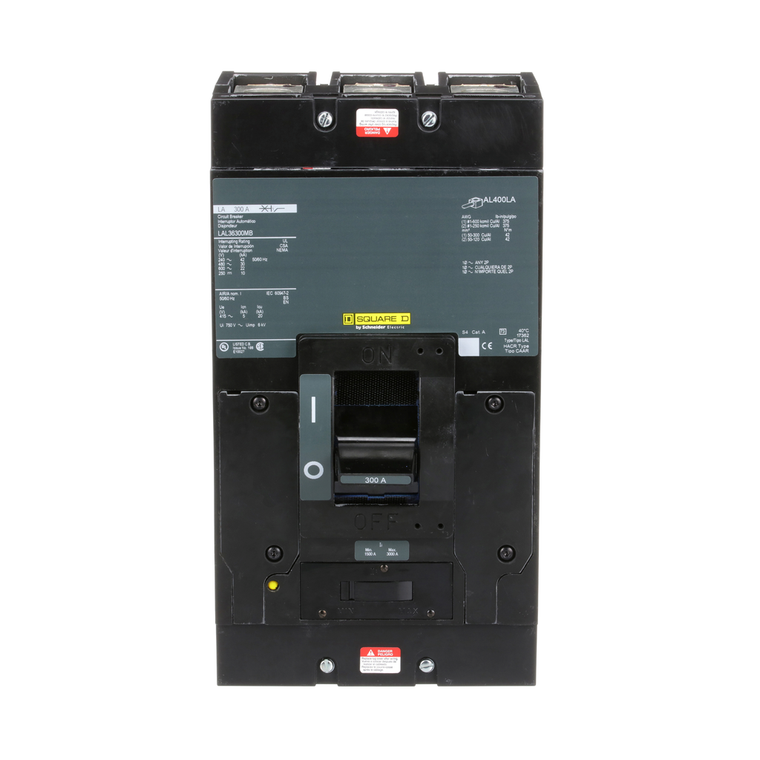

Schneider Electric LAL36300MB Molded Case Circuit Breaker 600V 300A

(No reviews yet) Write a Review
SKU:
LAL36300MB
UPC:
785901005537
Condition:
New
Magnetic Hold Current:
1500 A
Environmental Disclosure:
ENVPEP1410004EN
Circularity Profile:
N/A
Pvc Free:
Yes
Terminal Identifier:
AL400LA
Line Rated Current:
300 A
Mounting Mode:
unit mount
Trip Unit Technology:
thermal-magnetic
Circuit Breaker Application:
HACR rated
Product Or Component Type:
circuit breaker
Tightening Torque:
13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
Eu Rohs Directive:
Compliant with Exemptions
Electrical Connection:
lugs, load || lugs, line
Magnetic Tripping Current:
3000-3000 A
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Width:
6 in
Poles Description:
3P
Height:
11 in
Operator Profile:
short lever
Depth:
5.84 in
Sustainable Offer Status:
Green Premium product
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Product Certifications:
CSA || UL Listed || IEC
Warranty:
18 months
Halogen Content Performance:
Halogen free plastic parts product
Catalog:
View
Datasheet:
View
  • Schneider Electric LAL36300MB Molded Case Circuit Breaker 600V 300A
  • Schneider Electric LAL36300MB Molded Case Circuit Breaker 600V 300A
  • Schneider Electric LAL36300MB Molded Case Circuit Breaker 600V 300A
$4,619.00

Description

Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 300A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker MB suffix indicates a panel main breaker and has a shorter handle so that the panel door can close. LA breakers are UL 489, CSA, IEC certified.
