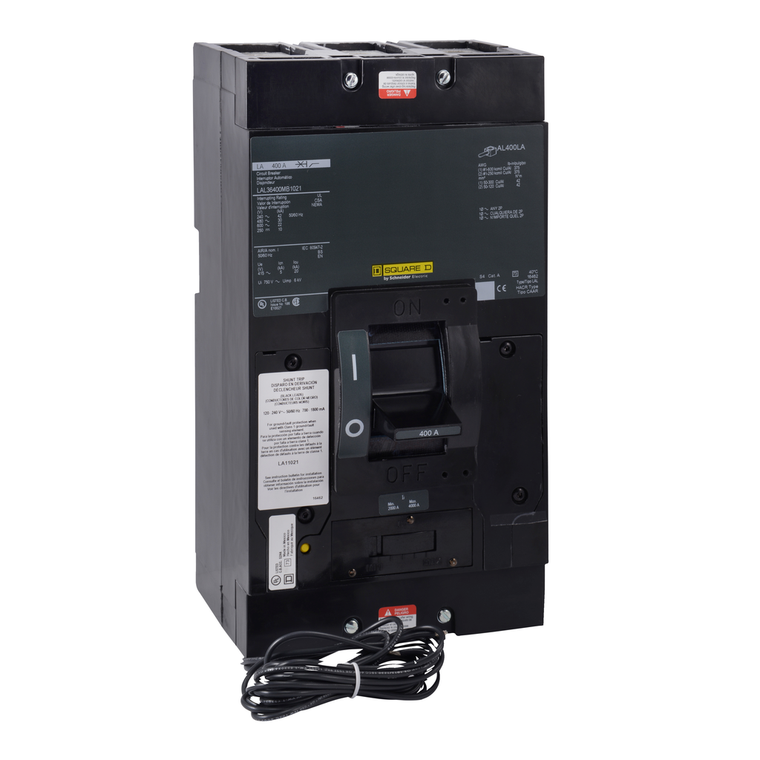

Schneider Electric LAL36400WB Molded Case Circuit Breaker 600V 400A

Schneider Electric LAL36400WB Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LAL36400WB
|
UPC:
785901397472
Availability:
Factory stock
$7,297.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 400A and 600VAC. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. The circuit breaker WB suffix indicates a walking beam interlock system. LA breakers are UL 489, CSA, IEC certified.
Additional Information
Halogen Content Performance:
Halogen free plastic parts product
Mounting Mode:
unit mount
Depth:
5.84 in
Width:
6 in
Tightening Torque:
13-13 N.m 42-304 mm² (AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² (AWG 1...250 kcmil)
Terminal Identifier:
AL400LA
Mercury Free:
Yes
Eu Rohs Directive:
Compliant with Exemptions
Circularity Profile:
N/A
Sustainable Offer Status:
Green Premium product
Pvc Free:
Yes
Height:
11 in
Electrical Connection:
lugs, load || lugs, line
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Warranty:
18 months
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP1410004EN
Rohs Exemption Information:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Magnetic Tripping Current:
4000-4000 A
Trip Unit Technology:
thermal-magnetic
Line Rated Current:
400 A
Poles Description:
3P
Circuit Breaker Application:
HACR rated
Magnetic Hold Current:
2000 A
Product Or Component Type:
circuit breaker
Product Certifications:
UL Listed || IEC || CSA
Datasheet:
View
