Schneider Electric LGA36400U31XSA Molded Case Circuit Breaker 600V 400A
$6,093.00
Schneider Electric

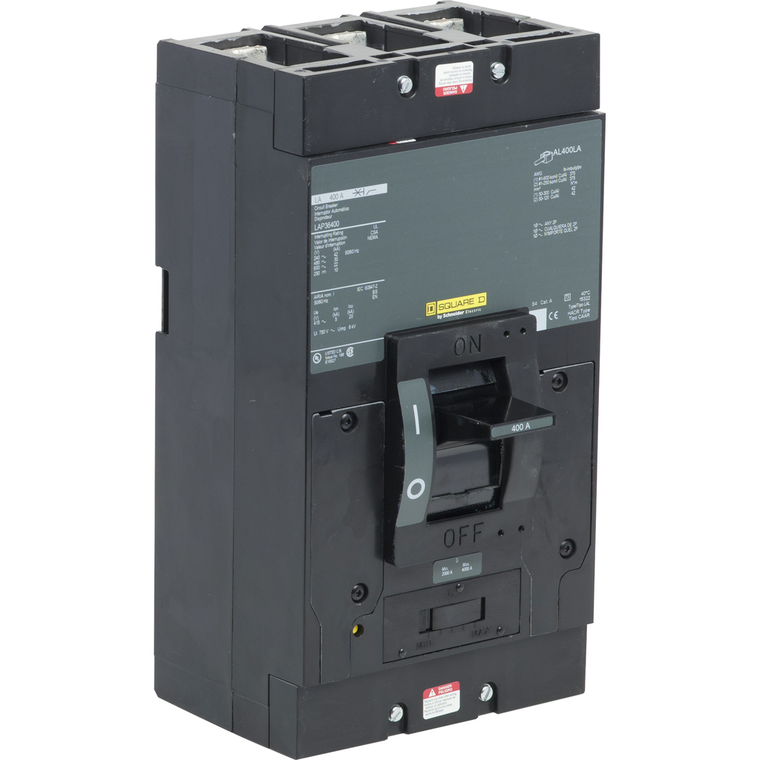

Schneider Electric LAP36400 Molded Case Circuit Breaker 600V 400A
Schneider Electric
$4,619.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Square D FA/LA Molded Case Circuit Breakers is designed to protect electrical systems from damage caused by overloads. For distribution systems supplied by transformers and distribution systems supplied by engine generator sets.
- Depth:
- 5.84 in
- Trip Unit Technology:
- magnetic
- Width:
- 6 in
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Warranty:
- 18 months
- Eu Rohs Directive:
- Compliant with Exemptions
- Environmental Disclosure:
- ENVPEP1410004EN
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Wiring Configuration:
- 3-wire
- Height:
- 11 in
- Product Certifications:
- UL Listed || CSA || IEC
- Sustainable Offer Status:
- Green Premium product
- Halogen Content Performance:
- Halogen free plastic parts product
- Circularity Profile:
- N/A
- Magnetic Hold Current:
- 2000 A
- Terminal Identifier:
- AL400LA
- Breaking Capacity Code:
- A
- Product Or Component Type:
- circuit breaker
- Magnetic Tripping Current:
- 4000-4000 A
- Electrical Connection:
- lugs, load || terminal, line
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Poles Description:
- 3P
- Rohs Exemption Information:
- Yes
- Mounting Mode:
- unit mount
- Circuit Breaker Application:
- HACR rated
- Pvc Free:
- Yes
- Line Rated Current:
- 400 A
- Datasheet:
- View
