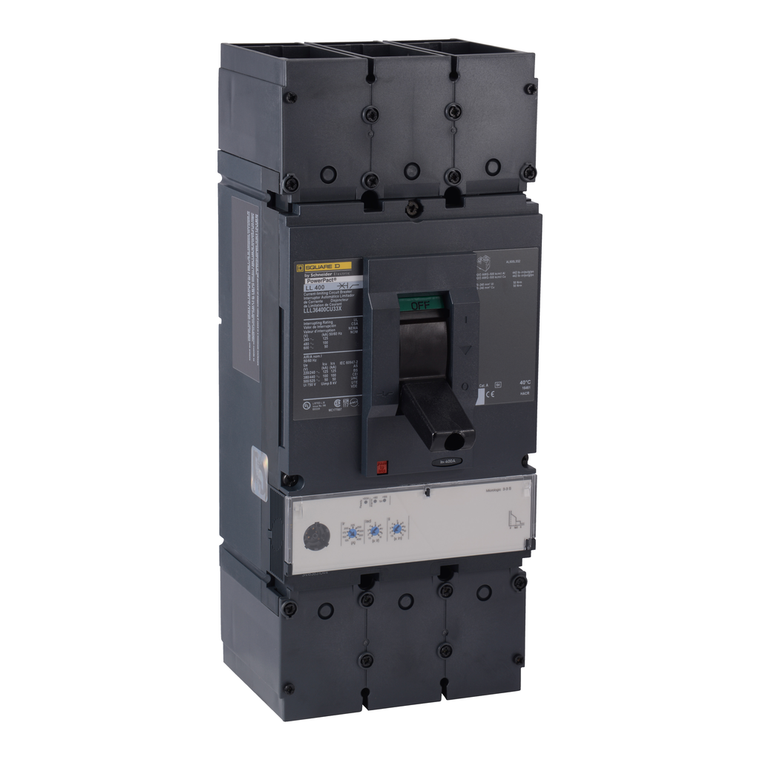

Schneider Electric LDL36400CU33X Molded Case Circuit Breaker 600V 400A

Schneider Electric LDL36400CU33X Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LDL36400CU33X
|
UPC:
7.85901E+11
Availability:
Contact us to confirm availability and lead times.
$6,211.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 14kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 100%. This circuit breaker has a continuous current rating of 100%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Ip Degree Of Protection:
front cover IP40
Pvc Free:
Yes
Device Application:
distribution
Range:
PowerPact
Ambient Air Temperature For Storage:
-50-85 °C
Net Weight:
6.2 kg
Circuit Breaker Application:
HACR rated
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Product Name:
PowerPact L
Trip Unit Technology:
electronic, standard, MicroLogic 3.3 S, LSI
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Utilisation Category:
category A
Height:
340 mm
Depth:
110 mm
Mercury Free:
Yes
Poles Description:
3P
Product Or Component Type:
circuit breaker
Circularity Profile:
ENVEOLI2206029EN
Line Rated Current:
400-400 A
Mounting Mode:
unit mount lug)
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Mounting Support:
lug
Pollution Degree:
3 IEC 60947-1
Width:
140 mm
Device Short Name:
L-Frame
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Network Frequency:
50/60 Hz
Environmental Disclosure:
ENVPEP2206029EN
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Rohs Exemption Information:
Yes
Communication Interface:
Modbus || Ethernet
Sustainable Offer Status:
Green Premium product
Breaking Capacity Code:
D
Trip Unit Name:
MicroLogic 3.3 S
Continuous Current Rating:
1
Product Certifications:
UL || CSA || NOM
Ambient Air Temperature For Operation:
-2-70 °C
Suitability For Isolation:
yes IEC 60947-2
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Control Type:
toggle
Terminal Identifier:
AL600LS52K3
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Warranty:
18 months
Electrical Connection:
lugs, line || lugs, load
Eu Rohs Directive:
Compliant with Exemptions
Color:
Black
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Long Time Pick-Up Adjustment Range:
0.25...1 x In
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Wire Stripping Length:
31 mm || 61 mm
