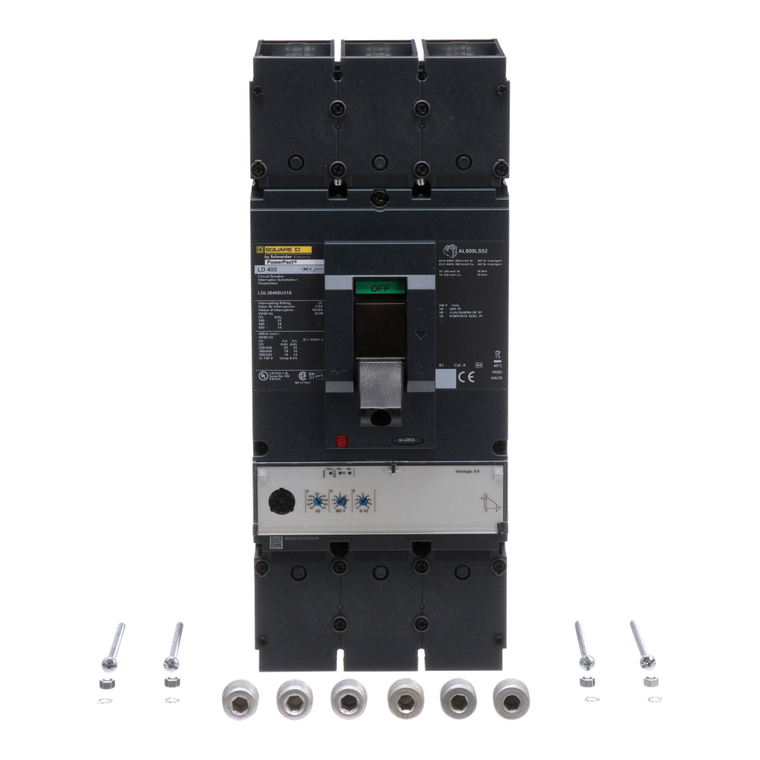

Schneider Electric LDL36400U31X Molded Case Circuit Breaker 600V 400A

Schneider Electric LDL36400U31X Molded Case Circuit Breaker 600V 400A

Schneider Electric
SKU:
LDL36400U31X
|
UPC:
785901083306
Availability:
Factory stock
$4,827.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 14kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Wire Stripping Length:
31 mm || 61 mm
Range:
PowerPact
Mercury Free:
Yes
Control Type:
toggle
Network Frequency:
50/60 Hz
Electrical Connection:
lugs, line || lugs, load
Rohs Exemption Information:
Yes
Ambient Air Temperature For Storage:
-50-85 °C
Mounting Support:
lug
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Device Short Name:
L-Frame
[Ics] Rated Service Breaking Capacity:
25 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Sustainable Offer Status:
Green Premium product
Trip Unit Name:
MicroLogic 3.3
Depth:
110 mm
Terminal Identifier:
AL600LS52K3
Communication Interface:
Modbus || Ethernet
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Product Certifications:
UL || CSA || NOM
Suitability For Isolation:
yes IEC 60947-2
Circularity Profile:
ENVEOLI2206029EN
Ip Degree Of Protection:
front cover IP40
Device Application:
distribution
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Mounting Mode:
unit mount lug)
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Net Weight:
6.2 kg
Circuit Breaker Application:
HACR rated
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Environmental Disclosure:
ENVPEP2206029EN
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Utilisation Category:
category A
Color:
Black
Eu Rohs Directive:
Compliant with Exemptions
Poles Description:
3P
Breaking Capacity:
25 kA 240 V AC 50/60 Hz UL 489 || 18 kA 480 V AC 50/60 Hz UL 489 || 14 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Warranty:
18 months
Product Name:
PowerPact L
Product Or Component Type:
circuit breaker
Pollution Degree:
3 IEC 60947-1
Pvc Free:
Yes
Height:
340 mm
Breaking Capacity Code:
D
Width:
140 mm
Ambient Air Temperature For Operation:
-2-70 °C
Line Rated Current:
400-400 A
Continuous Current Rating:
0.8
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
