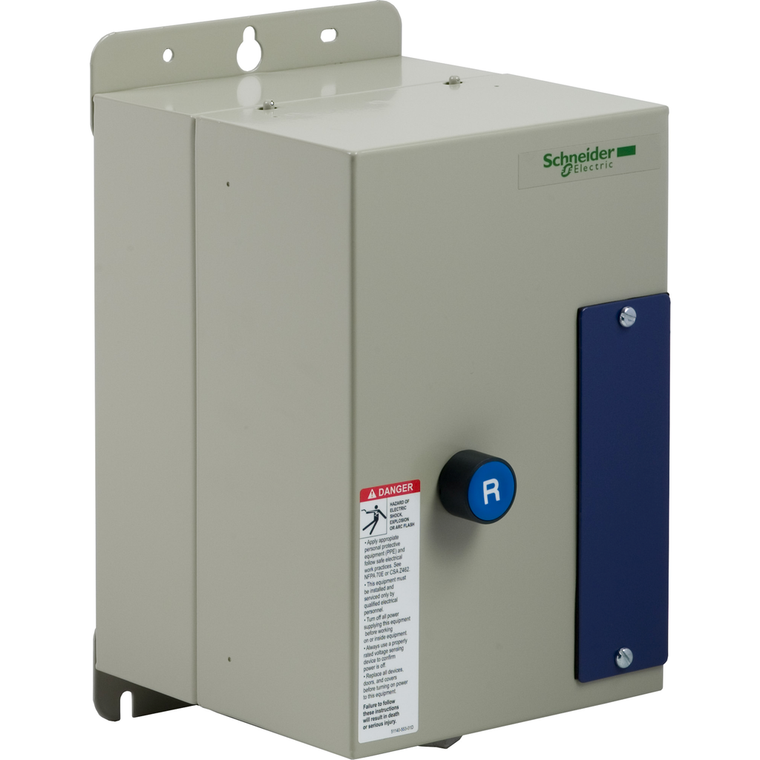

Schneider Electric LE1D093A72OG70 Enclosed Starter 600Vac 9A Iec
Schneider Electric
$260.38
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Full voltage nonversing starter, TeSys Deca, 3P, Type 12/3R, 9A, 120VAC coil, unfused
- Warranty:
- 18 months
- Pvc Free:
- Yes
- [Ue] Rated Operational Voltage:
- 120 V AC 50/60 Hz
- Motor Starter Type:
- non reversing
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
- Maximum Horse Power Rating:
- 0.3-0.3 hp 120 V AC, 1 phase || 1-1 hp 240 V AC, 1 phase || 2-2 hp 208 V AC, 3 phase || 2-2 hp 230 V AC, 3 phase || 5-5 hp 460 V AC, 3 phase || 7.5-7.5 hp 575 V AC, 3 phase
- Product Certifications:
- IEC || UL || CSA
- Location Of Connection:
- line
- Environmental Disclosure:
- ENVPEP111273EN
- Range Of Product:
- Instakits
- Sustainable Offer Status:
- Green Premium product
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- Circularity Profile:
- N/A
- Rohs Exemption Information:
- Yes
- Mercury Free:
- Yes
- Nema Degree Of Protection:
- NEMA 12 steel
- [Uc] Control Circuit Voltage:
- 600 V AC
- Eu Rohs Directive:
- Compliant
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- X
- Product Or Component Type:
- full voltage starter
- Reach Free Of Svhc:
- Yes
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- [Ie] Rated Operational Current Ac:
- 0.375
- Catalog:
- View
- Datasheet:
- View
