Schneider Electric LGA36400U31XSA Molded Case Circuit Breaker 600V 400A
$6,093.00
Schneider Electric

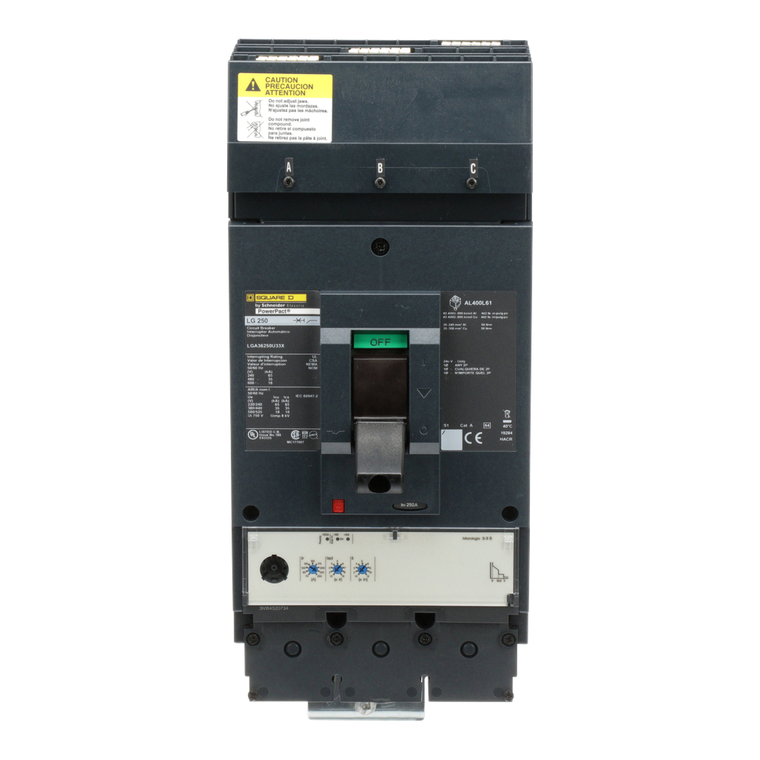

Schneider Electric LGA36250U33X Molded Case Circuit Breaker 600V 400A
Schneider Electric
$5,969.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 250A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Product Or Component Type:
- circuit breaker
- Pollution Degree:
- 3 IEC 60947-1
- Phase Connection:
- ABC
- Circularity Profile:
- ENVEOLI2206029EN
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Communication Interface:
- Modbus || Ethernet
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mercury Free:
- Yes
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Tightening Torque:
- 50-50 N.m 35-300 mm² (AWG 2...600 kcmil) || 50-50 N.m 35-240 mm² (AWG 2...500 kcmil)
- Trip Unit Name:
- MicroLogic 3.3 S
- Depth:
- 110 mm
- Product Name:
- PowerPact L
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Suitability For Isolation:
- yes IEC 60947-2
- Height:
- 340 mm
- Device Application:
- distribution
- Protection Technology:
- current limiter
- Net Weight:
- 6.2 kg
- Electrical Connection:
- I-Line connection, line || lugs, load
- Ambient Air Temperature For Operation:
- -2-70 °C
- Eu Rohs Directive:
- Compliant with Exemptions
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Pvc Free:
- Yes
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Width:
- 140 mm
- Ambient Air Temperature For Storage:
- -50-85 °C
- Breaking Capacity Code:
- G
- Terminal Identifier:
- AL400L61K3
- Utilisation Category:
- category A
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Product Certifications:
- UL || CSA || NOM
- Warranty:
- 18 months
- Network Frequency:
- 50/60 Hz
- Color:
- Black
- Mounting Height:
- 6 in
- Ip Degree Of Protection:
- front cover IP40
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Wire Stripping Length:
- 31 mm
- Mounting Support:
- bracket
- Mounting Mode:
- I-Line bracket)
- Sustainable Offer Status:
- Green Premium product
- Line Rated Current:
- 250-250 A
- Poles Description:
- 3P
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range:
- PowerPact
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Control Type:
- toggle
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.3 S, LSI
- Awg Gauge:
- AWG 2...600 kcmil copper || AWG 2...500 kcmil aluminium
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Circuit Breaker Application:
- HACR rated
- Environmental Disclosure:
- ENVPEP2206029EN
- Rohs Exemption Information:
- Yes
- Device Short Name:
- L-Frame
- Continuous Current Rating:
- 0.8
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
