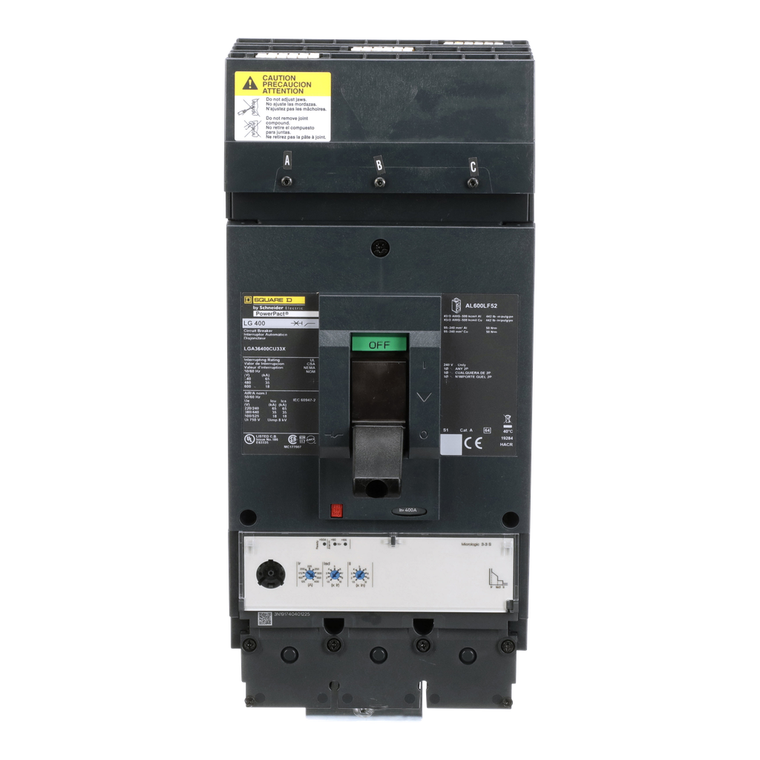

Schneider Electric LGA36400CU33X Molded Case Circuit Breaker 600V 400A
Schneider Electric
$6,833.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Ambient Air Temperature For Operation:
- -2-70 °C
- Environmental Disclosure:
- ENVPEP2206029EN
- Mercury Free:
- Yes
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Mounting Support:
- bracket
- Suitability For Isolation:
- yes IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Circuit Breaker Application:
- HACR rated
- Net Weight:
- 6.2 kg
- Range:
- PowerPact
- Product Certifications:
- UL || CSA || NOM
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Color:
- Black
- Trip Unit Name:
- MicroLogic 3.3 S
- Tightening Torque:
- 50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
- Breaking Capacity:
- 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
- Height:
- 340 mm
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Device Application:
- distribution
- Breaking Capacity Code:
- G
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.3 S, LSI
- Awg Gauge:
- 2 x AWG 2/0...500 kcmil aluminium/copper
- Ambient Air Temperature For Storage:
- -50-85 °C
- Pvc Free:
- Yes
- Protection Technology:
- current limiter
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Ip Degree Of Protection:
- front cover IP40
- Line Rated Current:
- 400-400 A
- [Ue] Rated Operational Voltage:
- 600 V AC 50/60 Hz IEC 60947-3
- Phase Connection:
- ABC
- Electrical Connection:
- I-Line connection, line || lugs, load
- Wire Stripping Length:
- 31 mm || 61 mm
- Communication Interface:
- Modbus || Ethernet
- Terminal Identifier:
- AL600LS52K3
- Rohs Exemption Information:
- Yes
- Mounting Height:
- 6 in
- Product Or Component Type:
- circuit breaker
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Warranty:
- 18 months
- Control Type:
- toggle
- Continuous Current Rating:
- 1
- Product Name:
- PowerPact L
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Network Frequency:
- 50/60 Hz
- Poles Description:
- 3P
- Circularity Profile:
- ENVEOLI2206029EN
- Depth:
- 110 mm
- Pollution Degree:
- 3 IEC 60947-1
- Utilisation Category:
- category A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Device Short Name:
- L-Frame
- Width:
- 140 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Eu Rohs Directive:
- Compliant with Exemptions
- Mounting Mode:
- I-Line bracket)
